The term double wide is exactly that. It's two scissor assemblies welded into one frame. The purpose of this is to offer wider tops that are not available with a single scissors. A standard rule is that the table top cannot be 2 feet wider than the base frame. An example of this is that a 48" wide base table can have up to a maximum top width of 72". However, if this was a double wide 48" wide base, the top could be 12 feet wide. The other benefits of double wide base tables are increased capacity and increased edge loading. Features:<ul Style="Margin-Top:0Px; Padding-Top: 5Px; Padding-Bottom: 5Px;"><li>Internally mounted 1.5 HP 115/230V-I-60 or 230/460-3-60 intermittent duty TENV super torque motor</li><li>115V operating control voltage</li><li>NEMA constant pressure. Magnet backed up-down push button control station with 10' straight or coiled cord</li><li>All controller components meet UL and/or CSA specifications</li><li>Cylinders with internal stops</li><li>10' power cord (connector not included)</li><li>Integral safety restraint maintenance bars</li><li>S.A.E. hoses and fittings</li><li>NEMA - 1 prewired controls and electrical connectors. Control box contains contactor, control transformer, thermal overload and fuse</li><li>Hard, chrome plated, polished shafting hydraulic cylinder piston rods</li><li>Surfaces degreased, descaled and finished with Safety Yellow and Blue enamel</li><li>Smooth steel top with yellow and black safety strips</li><li>Internal gear pump with check valve, relief valve, solenoid valve</li><li>Includes hydraulic oil and filter</li></ul>

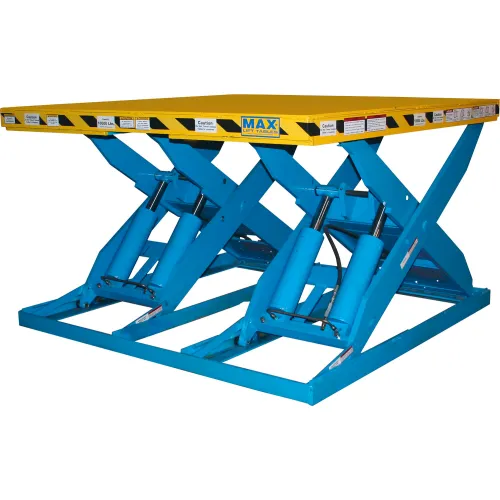

Ballymore Max-Double Wide Scissor Lift Table, Hand Operated, 8000 lb. Cap., 50"L x 48"W, 230/460V
