Home Material Handling Conveyors Portable & Flexible Best Value Portable Flexible & Expandable Gravity Conveyors

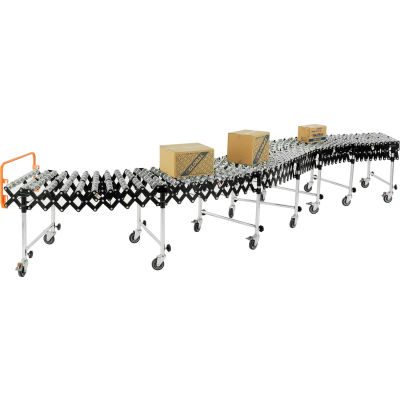

Portable Flexible & Expandable 6'2" to 24'8" Conveyor - Steel Skate Wheels - 24"W

Rollover image to zoom in

Click image to enlarge

Video - Click to Play
See all 7 items in product family

Portable Flexible & Expandable 6'2" to 24'8" Conveyor - Steel Skate Wheels - 24"W

Print

Item #: WB168113

Ships same day. Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

Qty Price
1-2 $2,249.00 ea.
3+ $2,133.00 ea.
Add to list

Customers Who Viewed This Also Viewed

Product Information
Photo/Video Gallery
Customer Review
Product Q&A
Accessories
BEST VALUE PORTABLE FLEXIBLE & EXPANDABLE CONVEYOR

Retracts to 6'2" to Save Space!

Instantly set up conveyor lines for shipping, receiving, assembly and packaging areas. Flexible, portable gravity conveyor expands from 6'2" to 24'8". Rugged 5/16" steel axles and self-tracking skate wheels with enclosed steel ball bearings offer smooth material flow. 175 lbs. per foot capacity. 1-1/4" (compressed) to 4" (expanded) axle centers for a 7" minimum package size. Seven zinc plated telescopic legs with 4" thermoplastic rubber swivel casters adjust independently from 31-3/4" to 40-1/2" to achieve maximum gravity flow and create banked curves. All units bend around a 27" radius. End legs have locking brakes. Includes convenient box stop and hook couplers to connect additional conveyors. Assembles easily.

Click here to see our full selection of Portable Conveyors, Flexible Conveyor and Expandable Conveyors.

Documents
Instructions

Documents are in PDF format

Product Specifications

    • WIDTH INCHES24 (60.96 cm)
    • CAPACITY LBS175 lbs. per ft.
    • ADJUSTABLE LENGTH6'2" to 24'8"
    • ASSEMBLYUnassembled
    • AXLE CENTER INCHES4 (10.16 cm)
    • BRANDGlobal Industrial™
    • CONSTRUCTIONSteel
    • INSIDE RADIUS INCHES27 (68.58 cm)
    • LEG SETS PER UNIT7
    • LIMITED WARRANTY1 Year
    • MANUFACTURERS PART NUMBER168113
    • MAXIMUM LEG HEIGHT INCHES40-1/2 (102.87 cm)
    • MINIMUM LEG HEIGHT INCHES31-3/4 (80.65 cm)
    • MODEL168113
    • SKATE WHEEL OR ROLLER CONSTRUCTIONSteel
    • SKATE WHEELS PER AXLE8
    • TYPESkate Wheel
    • WEIGHT LBS474 (215.45 kg)
Have A Question About This Product?
0 Question | 0 | Answer
Read All Q&A Ask a Question
Answer A Question

Avg. Customer Rating: (1 customer reviews)

Write your own review

Sort by:
1 ...

1 Result

CAN'T GET PARTS

Your review: WE HAVE HAD THIS UNIT FOR A COUPLE OF YEARS AND BROKE A CASTER WHEEL. GLOBAL CANNOT GET PARTS FOR THIS UNIT. AS LONG AS IT WORKS, IT'S GREAT. WHEN IT BREAKS IT IS JUNK. ***Global Management Comment: We have provided the Customer with replacement casters and he is satisfied.***
