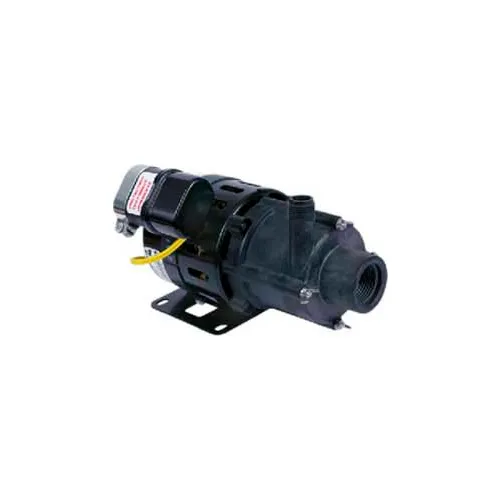

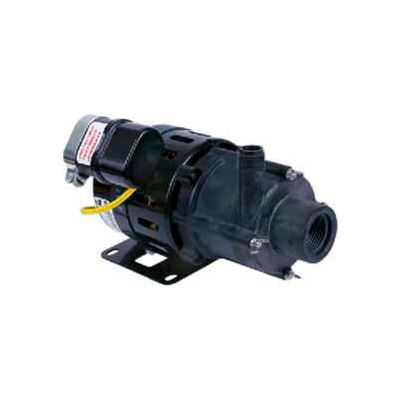

Little Giant® Magnetic Drive Pump 5-MD-HC, Highly Corrosive, 230V, 1050 At 1'
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton®), Viton®, carbon and ceramic parts. Thermally protected open fan-cooled permanent split capacitor motor with sleeve bearings. 6 ft power cord and 3-prong molded plug. (230V version has no plug).
Features:
Magnetically driven pumps for highly corrosive chemicals and solutions. The MD-HC Series features leak proof, seal-less magnetic drives and are designed for in-line, non-submersed use. These pumps feature polyphenylene sulfide (e.g. Ryton®), Viton®, carbon and ceramic parts. Thermally protected open fan-cooled permanent split capacitor motor with sleeve bearings. 6 ft power cord and 3-prong molded plug. (230V version has no plug).
Features:
- Specific Gravity: Up To 1.1
- Ambient Air Temperature: Up To 77°F (25°C)
- Fluid Temperature: Up to 200°F
Product Details
- Discharge Connection Type MNPT
- Voltage 230 V
- Inlet Connection Type FNPT
- Horsepower 1/8 HP
- Gallons per Hour 1050 @ 1' GAL/HR
- Wattage 240 W
- Type Magnetic Drive Pump
- Gallons per Minute 17.5 GAL/MIN (66.24 l)
- Temperature of Liquid Pumped 200
- Brand Little Giant
- Hertz 50/60 HZ
- Rotations per Minute 2500 RPM
- Manufacturers Part Number 583613
Weights & Dimensions
- Width 5-1/2 IN (13.97 cm)
- Discharge Connection Size 1/2 IN
- Length 8-11/16 IN (22.07 cm)
- Inlet Connection 1 IN (2.54 cm)
- Cord Length 6 w/o Plug FT
- Suction/Draw Head 27.5 FT (8.38 m)
- Height 5-1/2 IN (13.97 cm)
- Weight 10 LBS (4.55 kg)
