Price: $1,232.00
Customers Also Viewed

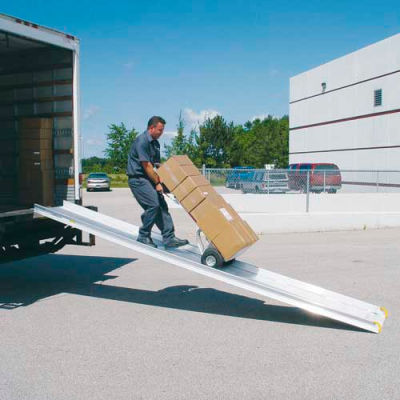

Magliner® Slider® ramp rolls out quickly and stores securely under the truck. Lightweight aluminum construction offers easy maneuverability and placement. Simply release the lock and pull the ramp out; it rolls out easily on wheels and will stop automatically at the end of the ramp. Raise the ramp, place the hooks into the truck sill slots and the ramp is ready to use. Twin-tooth ramp surface offers safe, secure traction in either direction of travel along the entire deck. Anti-rattle springs prevent the ramp from bouncing or rattling when the truck is being operated. An easy-to-operate automatic safety lock holds the ramp securely in place when stored under the truck body. An integral anti-theft angle stop prevents the ramp from being extended too far, helping to reduce the risk of theft when truck is unattended. Ship completely assembled for easy installation.
Note: Not designed for use with Powered Equipment or Pallet Jacks; recommended for Hand Truck use only.
General Information for this 12' Ramp Model:
| Truck Bed Height - Degree of Slope | |||||||||||
| Body Length | 30" | 34" | 38" | 42" | 46" | 50" | |||||
| 14' Minimum | 12° | 13.5° | 15.5° | 17° | 18.5° | 20.5° | |||||
Weights & Dimensions
- Width 24-1/8 IN (61.28 cm)
- Min Height 0 IN (0 cm)
- Rail Height 3-7/8 IN (9.84 cm)
- Length 12 FT (3.66 m)
- Track Height 5-3/8 IN (13.65 cm)
- Usable Width 22-1/8 IN (56.2 cm)
- Curb Height 1-9/16 IN (3.97 cm)
- Weight Capacity 1500 LBS (681.82 kg)
- Max Height 50 IN (127 cm)
- Weight 146 LBS (66.36 kg)
Product Details
- Assembly Required Assembled
- Type Hand Truck Ramp
- Brand Magliner
- Material Aluminum
- Manufacturers Part Number SR24121
There are 1 questions and 1 answer for this product.
-
I would like to know if this ramp comes with docking attachments; is this a complete assembly to fit a truck without slider dock mounted? If this is just a ramp, can you help me find the right outfit for a nissan diesal 1400 work truck?
Question Asked By: William, May 06, 2016
Answer This Question
Question Answered By:
-
Product Expert, May 06, 2016
as per the vendor This is the ramp only. The ramp only comes with the hooks, handles and the ramp. This is used when they already have the complete ramp and track assembly and they need to change out their ramp.
-
