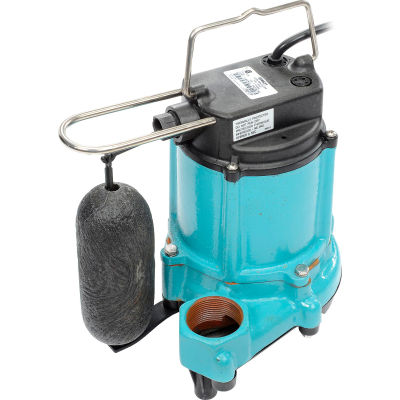

Little Giant® 6EN Series Sump Pump - 20' Power Cord & Float Switch
Little Giant 6EN Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EN series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
Little Giant 6EN Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EN series consumes only 6.0 amps while producing 50 gpm @ 5 ft. of head and reaching a maximum shut off of 22 ft. The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features
- 1/3 HP Permanent Split Capacitor (PSC) motor with thermal overload protection
- Energy saving low amp draw
- Cooler running motor which extends pump life
- Epoxy coated cast iron motor housing
- Vortex impeller
- Solids handling up to 1/2 inch diameter
- Available in manual or automatic operation with two switch options; integral snap action float or piggyback mechanical float
- On Level: 7" - 10"
- Off Level: 2" - 5"
- 2 year warranty
Weights & Dimensions
- Max Diameter Solids 1/2 in
- Switch Off Height 2 - 5 in
- Min Sump Pit Diameter 12
- Weight 28 lbs (12.73 kg)
- Discharge Connection Size 1-1/2 in (3.81 cm)
- Width 8-5/16 in (21.11 cm)
- Length 10-9/16 in (26.83 cm)
- Cord Length 20 ft (6.1 m)
- Max Head 22 ft (6.71 m)
- Height 10-3/16 in (25.88 cm)
- Switch On Height 7 - 10 in
Product Details
- Discharge Connection Type FNPT
- Impeller Material Nylon Vortex
- Switch Type Integral Snap Action Float
- Amperage 6 A
- Type Submersible Effluent Pump
- Temperature of Liquid Pumped 140
- Max Fluid Temperature 140 °F
- Material Cast Iron
- Shaft Seal Material Stainless Steel
- Voltage 115 V
- Horsepower 1/3 HP
- Gallons per Hour 3000 gal/hr (11356.24 l)
- Housing Material Cast Iron
- Gallons per Minute 50 gal/min (189.27 l)
- Brand Little Giant
- Series 6EN
- Base Material Cast Iron
- Solids Handling Yes
- Hertz 60 Hz
- Manufacturers Part Number 506804
- Color Blue
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications CSA
