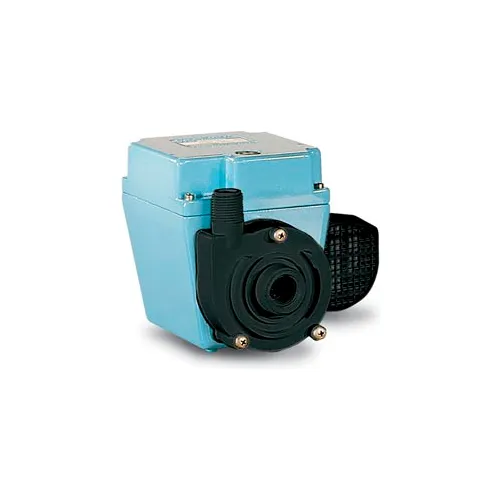

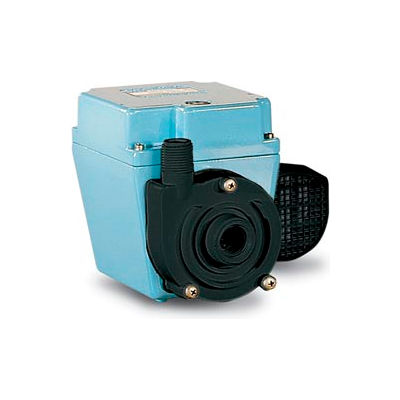

Little Giant 503603 3E-34N Series Dual Purpose Small Submersible Pump

Little Giant 503603 3E-34N Series Dual Purpose Small Submersible Pump

Item #: WBB215788

(2)

Enter postal code for delivery date estimate

Shipping to 10465 change

$502.54 up to 6% OFF

Price: $471.95

Quantity

Customers Also Viewed

Little Giant 505000 5-MSP Submersible Utility Pump with 10' Cord

Little Giant 505000 5-MSP Submersible Utility Pump with 10' Cord

Little Giant 555112 Non-Submersible Utility Pump- 115V with Nickel Plated Brass Pump Head

Little Giant 555112 Non-Submersible Utility Pump- 115V with Nickel Plated Brass Pump Head

Little Giant 527003 527003 NK-2 Multi-Purpose Pump - Permanently Lubricated

Little Giant 527003 527003 NK-2 Multi-Purpose Pump - Permanently Lubricated

Little Giant 502203 2E-38N Series Dual Purpose Small Submersible Pump

Little Giant 502203 2E-38N Series Dual Purpose Small Submersible Pump

Little Giant 526003 NK-1 Series Permanently Lubricated Multi-Purpose Pump

Little Giant 526003 NK-1 Series Permanently Lubricated Multi-Purpose Pump

Little Giant 518200 PE-1 Small Submersible Pump 115V - 170 GPH At 1'

Little Giant 518200 PE-1 Small Submersible Pump 115V - 170 GPH At 1'

Little Giant 501016 1-Y Small Submersible Pump - 230V- 205 GPH At 1'

Little Giant 501016 1-Y Small Submersible Pump - 230V- 205 GPH At 1'

BE Pressure 2" Water Pump - 7.0HP, 158 GPM, 210CC Powerease Engine

BE Pressure 2" Water Pump - 7.0HP, 158 GPM, 210CC Powerease Engine

Little Giant 506807 6EC-CIA-SFS Sump Pump - 10' Power Cord & Float Switch

Little Giant 506807 6EC-CIA-SFS Sump Pump - 10' Power Cord & Float Switch

Dual-purpose, oil-filled pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial, and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 670 GPH pump features a 1/2" MNPT discharge and 20.3' shut-off head capability.

Weights & Dimensions

  • Discharge Connection Size 1/2 in
  • Width 7 in (17.78 cm)
  • Length 5-1/2 in (13.97 cm)
  • Cord Length 10 ft (3.05 m)
  • Max Head 20.3 ft (6.19 m)
  • Height 8-1/4 in (20.96 cm)

Product Details

  • Continuous Operation Yes
  • Discharge Connection Type MNPT
  • Impeller Material Nylon
  • Max Pressure 5.1 psi
  • Amperage 2.5 A
  • Wattage 208 W
  • Type Small Submersible Pump
  • Temperature of Liquid Pumped 120
  • Max Fluid Temperature 120 °F
  • Material Aluminum
  • Submersible Yes
  • Shaft Seal Material Viton
  • Voltage 115 V
  • Horsepower 1/15 HP
  • Gallons per Hour 670 gal/hr (2536.23 l)
  • Phase 1
  • Includes 10 Power Cord
  • Gallons per Minute 11.1 gal/min (42.02 l)
  • Brand Little Giant
  • Series 3E-34N
  • Hertz 60 Hz
  • Solids Handling No
  • Manufacturers Part Number 503603

Warranty

  • Warranty 1 yr

Compliance & Certifications

  • Certifications CSA, UL
Customer Review

5.0

  • 5 Star

    2
  • 4 Star

    0
  • 3 Star

    0
  • 2 Star

    0
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: Richard

    Date: April 23, 2019

    Great Giant
    Your review:
    I was very pleasantly surprised to find a replacement for my circulating coolant pump on my cnc mill, and not to just find a replacement for the 20 plus year I have had the machine and no knowledge of how long it had been in service since I started using it, but to find the exact pump to replace the old one which ment no modifications needed to the sump just install the pump hook it up and get back to machining.
  • Reviewer: Mary

    Date: April 23, 2019

    Little Giant
    Your review:
    It works as promised and fit the job perfectly. Thank you,
