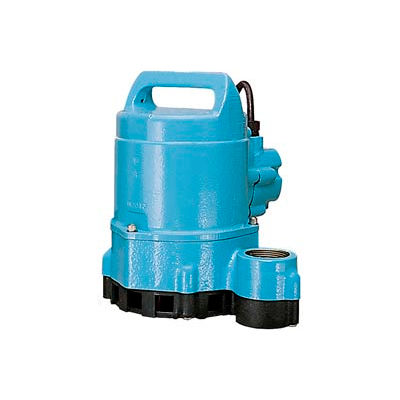

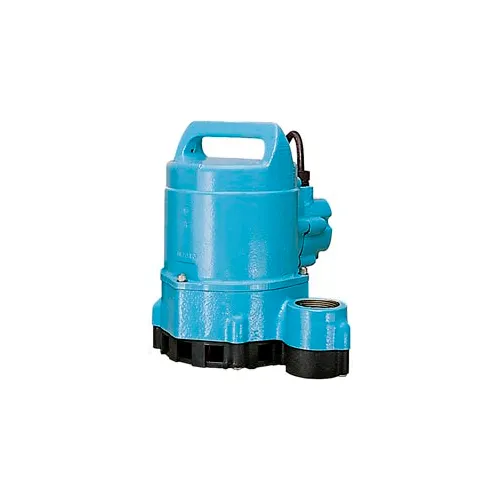

Little Giant 511610 10E Series High Temperature Manual Operation Submersible Effluent Pump

Little Giant 511610 10E Series High Temperature Manual Operation Submersible Effluent Pump

Item #: WBB215869

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$1,655.81 up to 18% OFF

Price: $1,361.00

Quantity

Customers Also Viewed

Little Giant 511710 10E Series High Temperature Automatic Operation Submersible Effluent Pump

Little Giant 511710 10E Series High Temperature Automatic Operation Submersible Effluent Pump

Little Giant 506158 6-CIA Submersible Sump Pump - 8'L Cord

Little Giant 506158 6-CIA Submersible Sump Pump - 8'L Cord

Little Giant 506804 6EC-CIA-SFS Sump Pump - 20' Power Cord & Float Switch

Little Giant 506804 6EC-CIA-SFS Sump Pump - 20' Power Cord & Float Switch

Little Giant 506807 6EC-CIA-SFS Sump Pump - 10' Power Cord & Float Switch

Little Giant 506807 6EC-CIA-SFS Sump Pump - 10' Power Cord & Float Switch

Little Giant 506801 6EC Series Sump Pump - 10' Power Cord

Little Giant 506801 6EC Series Sump Pump - 10' Power Cord

Little Giant 620200 WS50HM Submersible High Head Effluent Pump - 115V- 130 GPM At 5'

Little Giant 620200 WS50HM Submersible High Head Effluent Pump - 115V- 130 GPM At 5'

Little Giant 620206 WS100HM-34 Submersible High Head Filtered Effluent Pump - 460V- 164 GPM At 10'

Little Giant 620206 WS100HM-34 Submersible High Head Filtered Effluent Pump - 460V- 164 GPM At 10'

Zoeller M3098 Automatic High Temperature Submersible Pump 3098-0001, 1/2 HP

Zoeller M3098 Automatic High Temperature Submersible Pump 3098-0001, 1/2 HP

Zoeller Waste-Mate M292 Automatic High Head Submersible Sewage Pump 292-0001, 1/2 HP

Zoeller Waste-Mate M292 Automatic High Head Submersible Sewage Pump 292-0001, 1/2 HP

Zoeller Flow-Mate M98 Sump Pump For Septic Tanks 98-0001, LPP, Enhanced Flow Step Systems

Zoeller Flow-Mate M98 Sump Pump For Septic Tanks 98-0001, LPP, Enhanced Flow Step Systems

Little Giant 513273 Indoor or Outdoor High Water Alarm with Float

Little Giant 513273 Indoor or Outdoor High Water Alarm with Float

The HT-10E-CIM manual operation high temperature effluent pump is designed for light commercial and industrial use. This pump can be used to transfer or circulate wastewater up to 200 degrees farenheit and can handle 3/4" solids. Continuous duty rated.

Weights & Dimensions

  • Max Diameter Solids 3/4 in
  • Min Sump Pit Diameter 18
  • Weight 39 lbs (17.73 kg)
  • Width 9-1/8 in (23.18 cm)
  • Discharge Connection Size 1-1/2 in (3.81 cm)
  • Length 9-5/8 in (24.45 cm)
  • Cord Length 15 ft (4.57 m)
  • Max Head 24 ft (7.32 m)
  • Height 10-1/4 in (26.04 cm)

Product Details

  • Discharge Connection Type FNPT
  • Impeller Material Nylon Vortex
  • Switch Type Manual
  • Amperage 10.5 A
  • Type High Temperature Submersible
  • Temperature of Liquid Pumped 200
  • Max Fluid Temperature 200 °F
  • Material Epoxy Coated Cast Iron
  • Shaft Seal Material Carbon/Ni-Resist & Viton Face Seal
  • Voltage 115 V
  • Horsepower 1/2 HP
  • Gallons per Hour 4800 gal/hr (18169.98 l)
  • Housing Material Epoxy Coated Cast Iron
  • Phase 1
  • Gallons per Minute 80 gal/min (302.83 l)
  • Brand Little Giant
  • Series 10E
  • Hertz 60 Hz
  • Base Material Cast Iron
  • Solids Handling Yes
  • Manufacturers Part Number 511610
  • Color Blue

Warranty

  • Warranty 3

Compliance & Certifications

  • Certifications CSA
