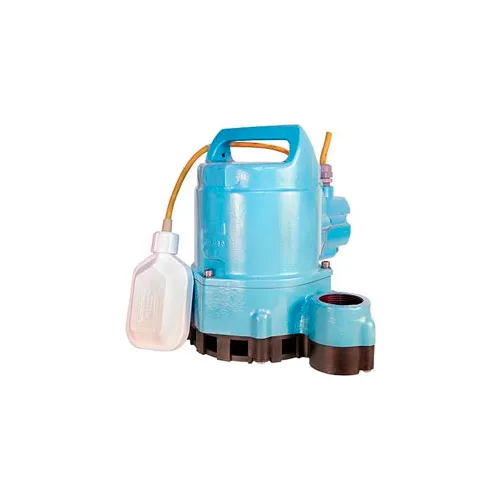

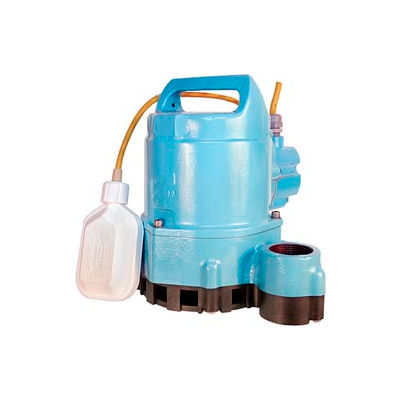

The HT-10E-CIA-FS automatic high temperature effluent pump is designed for light commercial and industrial use. The integral float switch has an 10" - 12" on level and a 2" - 4" off level. This pump can be used to transfer or circulate wastewater up to 200 degrees farenheit and can handle 3/4" solids. Continuous duty rated.
Weights & Dimensions
- Max Diameter Solids 3/4 in
- Switch Off Height 2 - 4 in
- Min Sump Pit Diameter 18
- Weight 37 lbs (16.82 kg)
- Width 9-1/8 in (23.18 cm)
- Discharge Connection Size 1-1/2 in (3.81 cm)
- Length 9-5/8 in (24.45 cm)
- Cord Length 15 ft (4.57 m)
- Max Head 24 ft (7.32 m)
- Height 10-1/4 in (26.04 cm)
- Switch On Height 10 - 12 in
Product Details
- Discharge Connection Type FNPT
- Impeller Material Nylon Vortex
- Switch Type Integral Mechanical Float
- Amperage 10.5 A
- Type High Temperature Submersible
- Temperature of Liquid Pumped 200
- Max Fluid Temperature 200 °F
- Material Epoxy Coated Cast Iron
- Rotations per Minute 1750 rpm
- Shaft Seal Material Carbon/Ni-Resist & Viton Face Seal
- Voltage 115 V
- Horsepower 1/2 HP
- Gallons per Hour 4800 gal/hr (18169.98 l)
- Housing Material Epoxy Coated Cast Iron
- Phase 1
- Gallons per Minute 80 gal/min (302.83 l)
- Brand Little Giant
- Series 10E
- Hertz 60 Hz
- Base Material Cast Iron
- Solids Handling Yes
- Manufacturers Part Number 511710
- Color Blue
Warranty
- Warranty 3
Compliance & Certifications
- Certifications CSA
