Rugged, heavy gage 316 stainless steel, corrosion resistant stainless construction provides superior chemical resistance up to 138.5 GPM (24.8 m3/h) and max. head 82.1 (17.4m)
Weights & Dimensions
- Discharge Connection Size 1-1/2 in (3.81 cm)
- Width 8-13/16 in (22.38 cm)
- Length 16-1/16 in (40.8 cm)
- Inlet Connection 2 in (5.08 cm)
- Max Head 82-1/8 ft (25.03 m)
- Height 8-3/4 in (22.23 cm)
Product Details
- Discharge Connection Type NPT
- Inlet Connection Type NPT
- Type Stainless Steel Mechanically Sealed Pump
- Package Quantity 1
- Material Stainless Steel
- Style AC Series
- Rotations per Minute 3450 rpm
- Shaft Seal Material Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez
- Tube Material Stainless Steel
- Voltage 230/460 V
- Horsepower 2 HP
- Gallons per Hour 8100 gal/hr (30661.84 l)
- Housing Material Stainless Steel
- Phase 3
- Motor Type TEFC Electric
- Gallons per Minute 138.5 gal/min (524.28 l)
- Brand Finish Thompson.
- Series AC
- Hertz 60 Hz
- Manufacturers Part Number AC5STS3V458B015C24
- Max Viscosity (CP) 100
- Color Silver
Warranty
- Warranty 1 yr
Customer Review
Product Q & A
There are no questions for this product.
Accessories

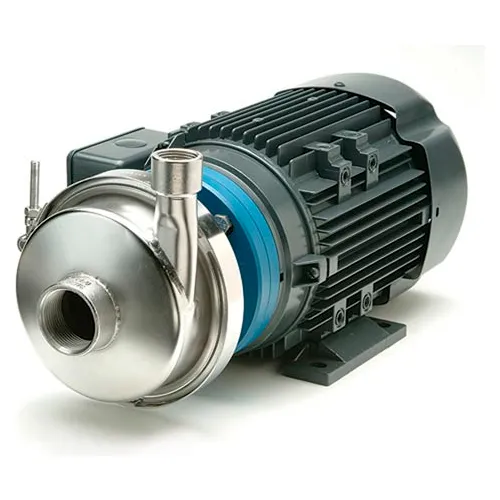

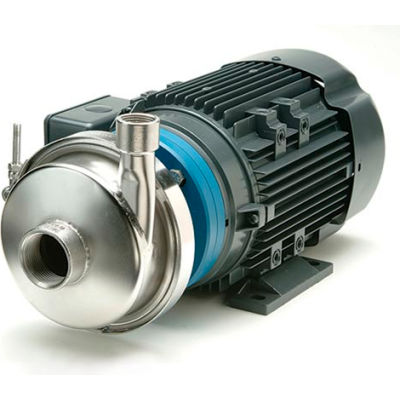

Stainless Steel Centrifugal Pump - 4-1/2" Impeller, 2Hp, 3Ph TEFC Motor
