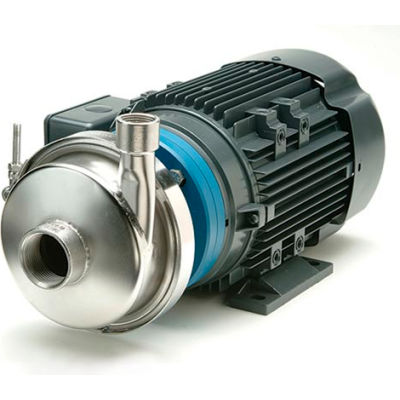

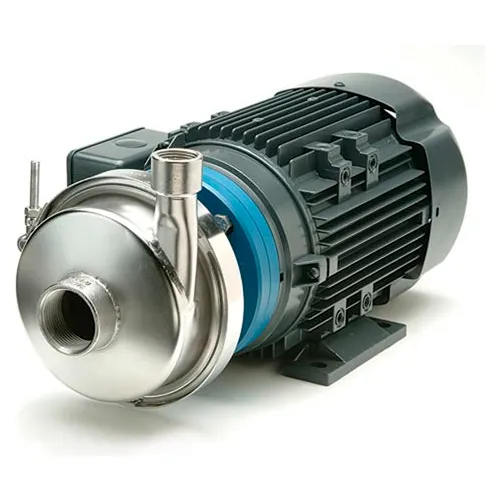

Rugged, heavy gage 316 stainless steel, corrosion resistant stainless construction provides superior chemical resistance, up to 95 GPM (16.6 m3/h) and max head of 59.9 (12.4m)
Weights & Dimensions
- Discharge Connection Size 1-1/4 in (3.18 cm)
- Width 8-1/2 in (21.59 cm)
- Length 14-13/16 in (37.62 cm)
- Inlet Connection 1-1/2 in (3.81 cm)
- Max Head 59-7/8 ft (18.25 m)
- Height 8-3/4 in (22.23 cm)
Product Details
- Discharge Connection Type NPT
- Inlet Connection Type NPT
- Type Stainless Steel Mechanically Sealed Pump
- Package Quantity 1
- Material Stainless Steel
- Style AC Series
- Rotations per Minute 3450 rpm
- Shaft Seal Material Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez
- Tube Material Stainless Steel
- Voltage 115/230 V
- Max Exit Pressure 16.6 psi
- Horsepower 1 HP
- Gallons per Hour 5700 gal/hr (21576.85 l)
- Max Flow 95 gal/hr
- Housing Material Stainless Steel
- Phase 1
- Motor Type TEFC Electric
- Gallons per Minute 95 gal/min (359.61 l)
- Brand Finish Thompson.
- Series AC
- Hertz 60 Hz
- Manufacturers Part Number AC5STS1V400B015C12
- Max Viscosity (CP) 100
- Color Silver
Warranty
- Warranty 1 yr
