$1,713.74 up to 14% OFF
Price: $1,477.00
Customers Also Viewed
Rugged, heavy gage 316 stainless steel , corrosion resistant stainless construction provides superior chemical resistance, up to 300°, max flow 37.1 GPM (6.7 m3/h) and 54.5' (10.4) max head.
Weights & Dimensions
- Discharge Connection Size 1/2 in
- Width 8-1/2 in (21.59 cm)
- Length 14-3/16 in (36.04 cm)
- Inlet Connection 3/4 in
- Max Head 54-1/2 ft (16.61 m)
- Height 7-1/2 in (19.05 cm)
Product Details
- Discharge Connection Type NPT
- Inlet Connection Type NPT
- Type Stainless Steel Mechanically Sealed Pump
- Package Quantity 1
- Material Stainless Steel
- Style AC Series
- Rotations per Minute 3450 rpm
- Shaft Seal Material Carbon, Ceramic, SiC, FKM, EPDM, Buna, or Kalrez
- Tube Material Stainless Steel
- Voltage 115/230 V
- Max Exit Pressure 54.5 psi
- Horsepower 1/2 HP
- Gallons per Hour 2220 gal/hr (8403.61 l)
- Max Flow 37.1 gal/hr
- Housing Material Stainless Steel
- Phase 1
- Motor Type TEFC Electric
- Gallons per Minute 37.1 gal/min (140.44 l)
- Brand Finish Thompson.
- Series AC
- Hertz 60 Hz
- Manufacturers Part Number AC4STS1V320B015C08
- Max Viscosity (CP) 100
- Color Silver
Warranty
- Warranty 1 yr
Customer Review
Product Q & A
There are no questions for this product.
Accessories

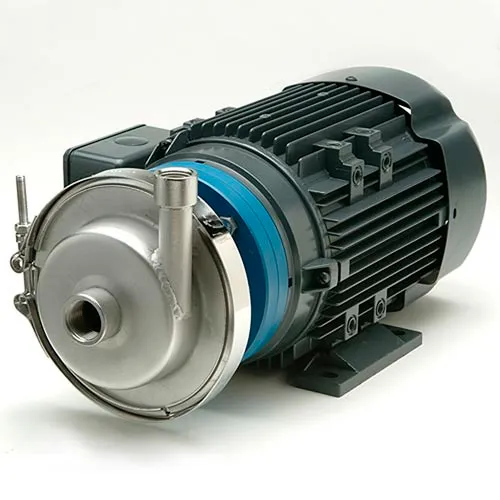

Stainless Steel Centrifugal Pump - 3-1/4" Impeller, 1/2HP, 1Ph TEFC Motor
