Federal Signal

Model # :WBB171361

MPN #: 31X-120-3

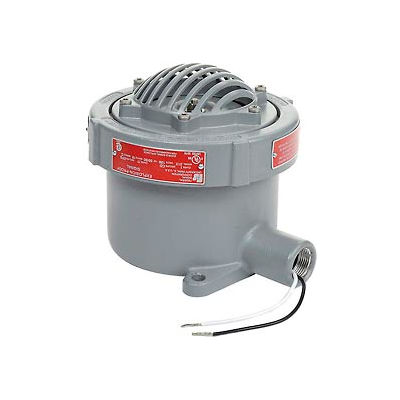

Federal Signal 31X-120-3 Horn, 120VAC, explosion-proof

Product Description
These Federal Signal explosion-proof vibrating horns are constructed for safe use in hazardous environments. They are enclosed in heavy-duty copper-free cast aluminum housings tapped for 3/4 - inch conduit. Federal Signal Model 31X is corrosion-resistant vibrating horn with stainless steel diaphragm. The Model 31X is 120VAC and features an internal volume control. The 31X model is UL and cUL Listed for Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F, and G; and Class III. Both are CSA (Canadian Standards Association) Certified. A five minute duty cycle applies to both models. 5 Year Limited Warranty.
PRICE
$2,319.00

1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Depth6-1/2 in
Height7-5/8 in
Weight8 lbs
Diameter6-1/2 in

Product Details

Operating Temperature-31F to 150F
Mounting LocationPipe, Surface
Voltage120 V
Made in the USAYes
Package Quantity1
Manufacturers Part Number31X-120-3
Decibels100
Operating Current0.2 A
LED Color FamilyGray
BrandFederal Signal
