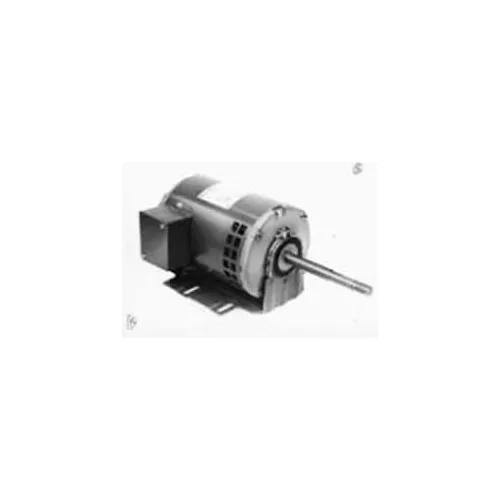

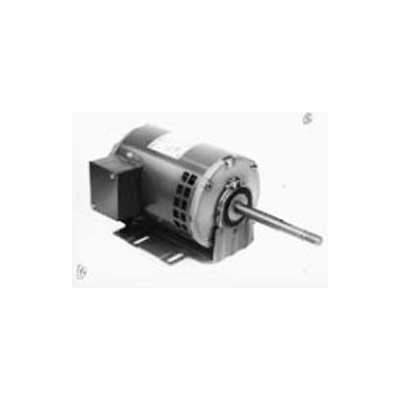

Marathon Motors Commercial Motor, X601, 56C17D2101, 1/3HP, 115/208-230V, 1725RPM, 1PH, DP

Marathon Motors Commercial Motor, X601, 56C17D2101, 1/3HP, 115/208-230V, 1725RPM, 1PH, DP

Item #: WBB869067

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $367.95

Quantity

Customers Also Viewed

Marathon Motors Commercial Motor, X601, 56C17D2101, 1/3HP, 115/208-230V, 1725RPM, 1PH, DP

Commercial laundry dryer motors. Designed to replace Huebsch commercial laundry dryer motors. Equipped with automatic reset thermal protection, a special threaded shaft extension and ball bearings.

  • HORSEPOWER 1/3
  • ENCLOSURE DP
  • FRAME 56C
  • BRAND Marathon Motors
  • MOUNTING Resilient Base
  • MOTOR RPM 60Hz 1725
  • RPM 1725
  • PHASE 1
  • VOLTAGE 115/208-230
  • THERMAL PROTECTION Automatic Protector
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Open/Drip Proof
  • OPPOSITE END BEARING Ball
  • UL Recognized Construction and Protector
  • CSA Y
  • CATALOG NO. X601
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER X601
  • RPM RANGE 1701-1800
  • INSULATION CLASS B
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6203
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END Ball
  • ORIENTATION Horizontal
  • IP CODE 22
  • STARTING TYPE Cap Start Ind Run
  • NEMA DESIGN No Design Code
  • KVA-CODE K
  • WEIGHT IN LBS. 20 (9.09 kg)
  • 60 HERTZ SF 1.35
  • 60 HERTZ FL AMPS 5.8/2.8-2.9
  • 60 HERTZ kW 0.25
  • MODEL NUMBER 56C17D2101
