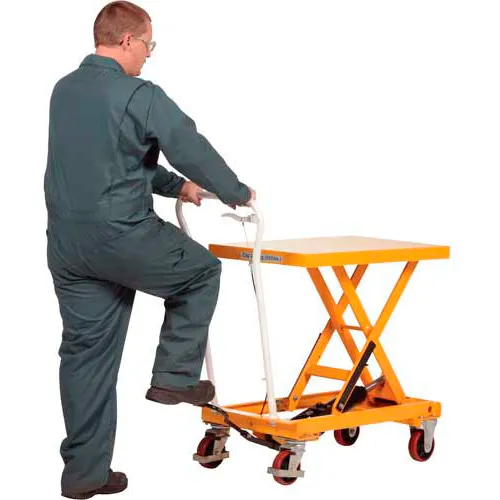

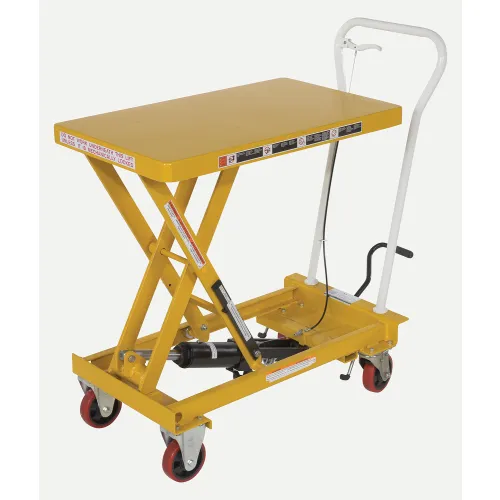

AUTO-SHIFT HYDRAULIC ELEVATING MOBILE SCISSOR LIFT

Two-Speed Foot Pump Automatically Shifts for Maximum Efficiency.

This Mobile Scissor Lift features a unique pump that offers a high-speed action when the platform is loaded with less than 110 lbs. (2" of lift per pump) to lift the platform quickly. The pump automatically shifts to low-speed (1" of lift per pump) when the load is over 110 lbs., requiring less foot pump force to operate. Bicycle style grip handle offers easy steering and includes a fingertip release for smooth lowering. Rolls smoothly with 5" x 3-3/8" polyurethane casters with a caster lock for stationary positioning.

Weights & Dimensions

  • Wheel Diameter 5 IN (12.7 cm)
  • Width 19-3/4 IN (50.17 cm)
  • Length 32-3/4 IN (83.19 cm)
  • Lowered Height 12-1/2 IN (31.75 cm)
  • Caster Size 5 IN (12.7 cm)
  • Raised Height 36-1/8 IN (91.76 cm)
  • Weight Capacity 550 LBS (250 kg)
  • Weight 144 LBS (65.45 kg)

Product Details

  • Operation Manual
  • Assembly Required No
  • Type Single Scissor Lift Table
  • Material Steel
  • Wheel Type Polyurethane
  • Lift Time High-Speed < 110 lbs. = 2" per Pump; Low Speed > 110 lbs. = 1" per Pump
  • Lift Type Hydraulic
  • Brand Vestil
  • Control Foot Operated
  • Manufacturers Part Number CART-550-AS
  • Color Family Orange
