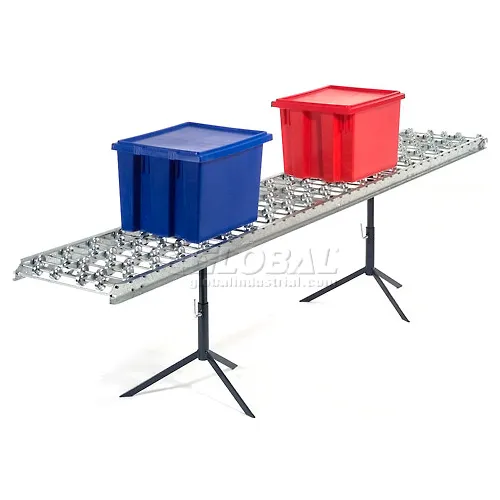

Shown With Optional Floor Supports
Frequently Purchased Together
Price: $947.00
Customers Also Viewed
Product Information
Photo/Video Gallery
Customer Review
Product Q&A
Accessories
Omni Metalcraft ALUMINUM 10' LONG STRAIGHT SECTION SKATE WHEEL CONVEYOR

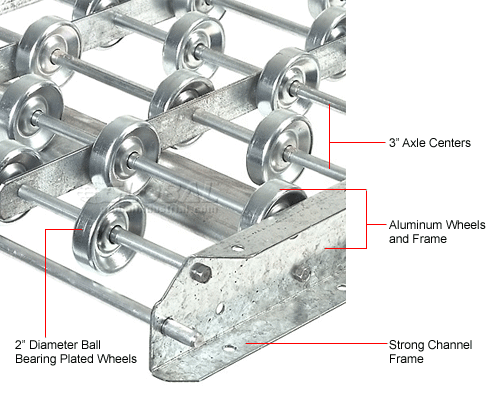

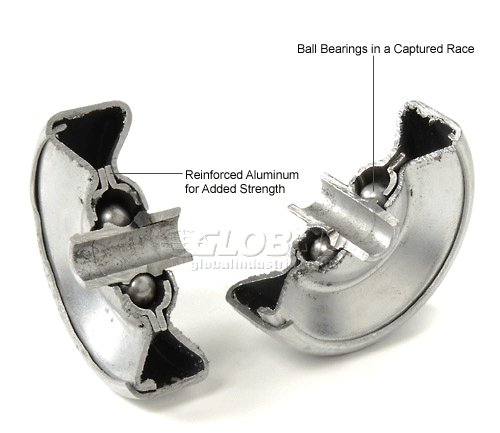

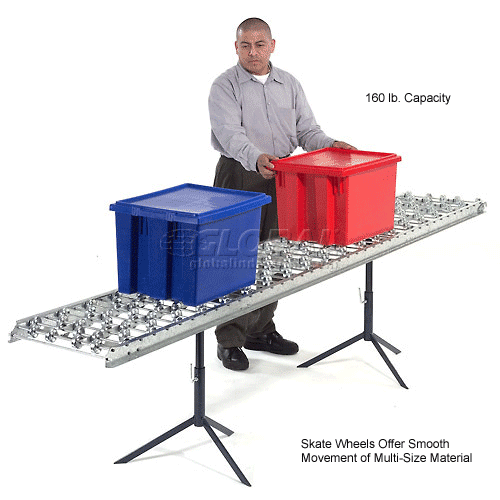

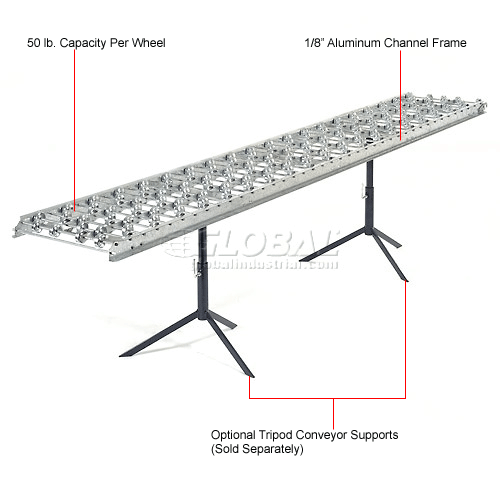

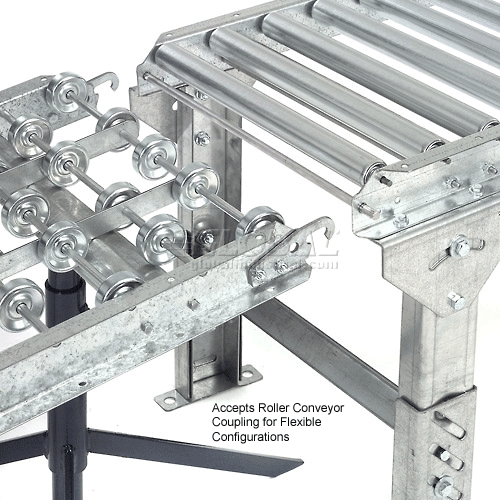

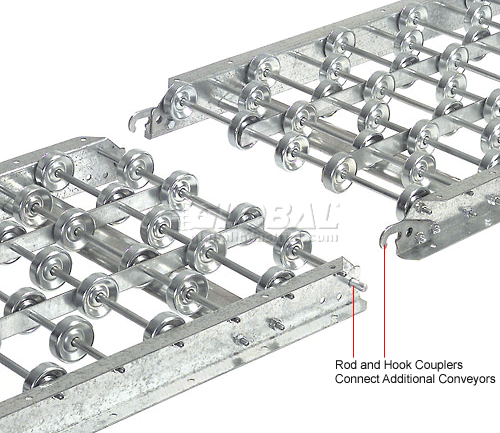

Skate wheel conveyors offer smooth movement of multi-sized material. 2" diameter ball bearing plated wheels and 3" axle centers. 2-1/2" x 1" x 1/8" aluminum channel frame with hook and rod coupling is lightweight for portability and corrosion resistant. To increase the capacity of 10 ft. sections add center leg support and capacity is equal to two 5 ft. lengths. Capacity is 50 lbs. per wheel.
Skate wheel conveyors offer smooth movement of multi-sized material. 2" diameter ball bearing plated wheels and 3" axle centers. 2-1/2" x 1" x 1/8" aluminum channel frame with hook and rod coupling is lightweight for portability and corrosion resistant. To increase the capacity of 10 ft. sections add center leg support and capacity is equal to two 5 ft. lengths. Capacity is 50 lbs. per wheel.
Weights & Dimensions
- Between Frame Width 22 in (55.88 cm)
- Width 24 in (60.96 cm)
- Skate Wheel Diameter 2 in (5.08 cm)
- Inside Radius --- in
- Length 10 ft (3.05 m)
- Weight Capacity 160 lbs (72.73 kg)
- Weight 71 lbs (32.27 kg)
Product Details
- Assembly Required Assembled
- Type Straight Conveyor
- Brand Omni Metalcraft
- Material Aluminum
- Manufacturers Part Number WAHS3-24-24-10
- Conveyor Section Straight
- Wheels per Foot 24
⚌
