Price: $289.95
Customers Also Viewed

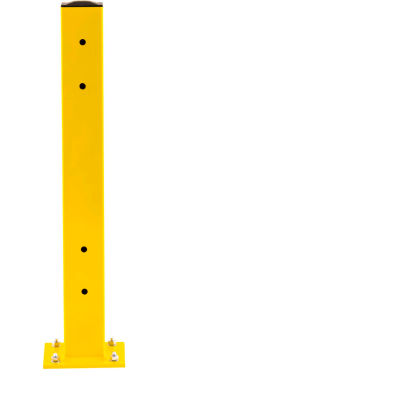

Heavy-Duty Guard Rail protects pedestrians and equipment the standard 44" column is made of steel and is designed to support two parallel guardrails. Sold individually, each column is equivalent to 5" x 5" x 1/8" thick and has 4 punched holes with a diameter of ¾" on each side. The column is secured at the top with a customized plastic black cap and is welded to a 10" x 10" x ½" baseplate consisting of 4 evenly spaced ¾" diameter hole at each corner. The columns are powder-coated Safety Yellow and weights a total of 45 lbs. Components are modular and this post can have a single or double guardrail installed. When properly installed-engineered to withstand a 10,000 lb. impact at 4 mph. Hardware included with post (1) 5" x 5" post cap, (8) Post Plugs for any open rail installation holes. Post Thickness 1/8". Rail Height Inches 42. Column Height Inches 44. Manufacturer Part Number GPDC.
Weights & Dimensions
- Post Diameter 5 IN
- Base Width 10 IN
- Base Dimensions (W x L) 10" x 10"
- Height 44 IN
- Gauge 45 GA
- Base Thickness 1/2" IN
- Base Length 10 IN
Product Details
- Impact Capacity 10,000 lbs @ 4mph
- Mounting Location Floor Mounted
- Assembly Required Unassembled
- Description Guard Rail Post
- Base Style Centred Baseplate
- Component Style Double Rail Post
- Type Guard Rail System
- Brand Cogan®
- Material ASTM A607 Grade 50 Steel
- Style Post - Double Rail Centred Baseplate
- Finish Powder Coat Paint
- Manufacturers Part Number GPDC
- Color Safety Yellow
