Standard specifications include:

BED - 6-5/8" deep x 12 ga. formed steel Slider Bed is powder coat painted. Reinforced with 3/4" pipe which forms sockets for guard rails.
BELT - Ultimate 140BBS - Nitrile Belt
END DRIVE - Located on discharge end of conveyor, chain guard on left hand side.
DRIVE PULLEY - 8" dia. with 1-3/16" dia. shaft at bearings, machine crowned and fully lagged.
TAIL PULLEY - 6" dia. with 1-3/16" dia. shaft at bearings, machine crowned.
SNUB IDLER - Adjustable 2-1/8" dia. for tail end; 2-1/2" dia. for drive end. Pre-lubricated ball
bearings. Guards included.
RETURN IDLER - Adjustable 1.9" dia. pre-lubricated ball bearings.
TAKE-UP - Take-ups at tail pulley. Provides 4" of belt take-up.
BEARINGS - Sealed, pre-lubricated, self-aligning, ball bearings on drive and tail pulleys.
MOTOR - 1 HP 115 - 1 Phase - 60 Hz. Premium Energy Efficient C-Face.
SPEED REDUCTION - Sealed worm gear C-Face speed reducer. No. 50 roller chain to drive pulley.
BELT SPEED - Constant 65 FPM.
CAPACITY - Maximum Load per Linear Foot of conveyor is 100 lbs.

Note: Floor supports are not included; please order separately. This product is non-cancelable and non-returnable. Need a customized system or solution? Please reach out to your Global Industrial sales representative and they can get you set up with a custom quote for your conveyor needs.

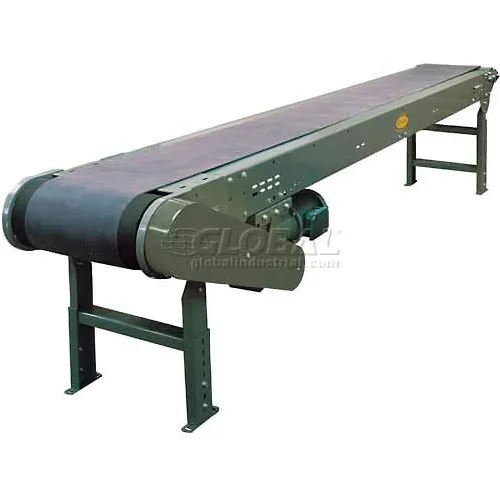

Hytrol&#174; 24&quot;W Model TL Heavy Duty Slider Bed Conveyor, 12'L, 575lb Cap., 65 FPM, 115V

121l-heavy-duty-slider-bed-conveyor-24w-belt
