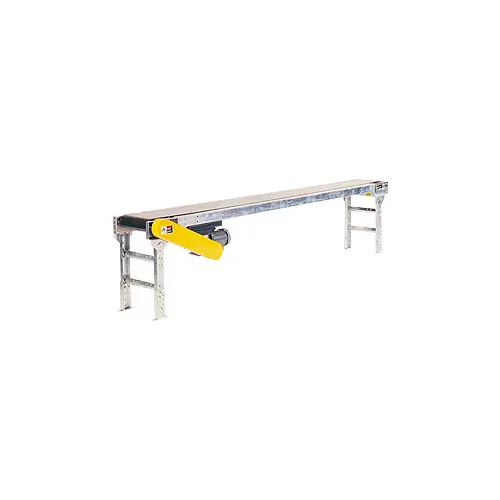

Entire Power Belt Conveyor Shown
Price: $240.95
Customers Also Viewed
Totally enclosed 1 HP, 115/230V, 60 Hz single phase motor. Includes 8 ft. power cord and on/off switch for 115V use. Quality features include crowned and fully lagged 4" drive and tail pulleys with 1-3/16" dia. shafts. 60 FPM.
Allows for higher conveyor load capacities than with the standard 1/2 HP motor.
NOTE: This is a Horsepower upgrade to the standard 1/2 HP Motor. It is not a standalone Motor and must be purchased with a Conveyor that it will be applied to.
12"W Belt = 740 cap. lbs.
20-24"W Belt = 640 cap. lbs.
Load Capacity Lbs. Uniformly Distributed Over Length | ||
Horsepower | 12"W Belt | 20" - 24"W Belt |
1/2 (Standard) | 250 | 160 |
3/4 (Optional) | 500 | 390 |
1 (Optional) | 740 | 640 |
1-1/2 (Optional) | 1230 | 1090 |
2 (Optional) | 1680 | 1580 |
- CAPACITY 12"W Belt = 740 lbs; 20" & 24"W Belt = 640 lbs
- ASSEMBLY Assembled
- BRAND Omni Metalcraft
- DRIVE PULLEY DIAMETER INCHES 4 (10.16 cm)
- HORSE POWER 1
- MANUFACTURERS PART NUMBER 1 HP
- VOLTAGE 115/230
- WEIGHT LBS 12 (5.45 kg)
