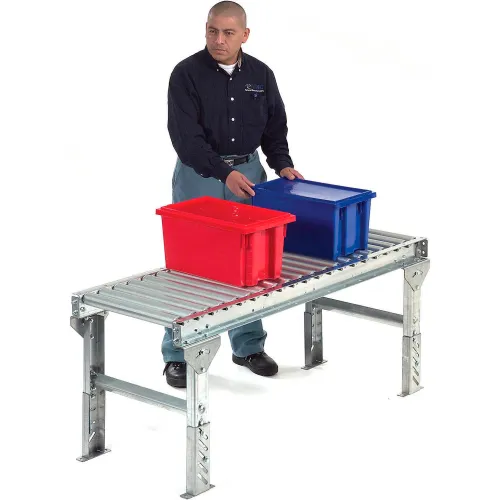

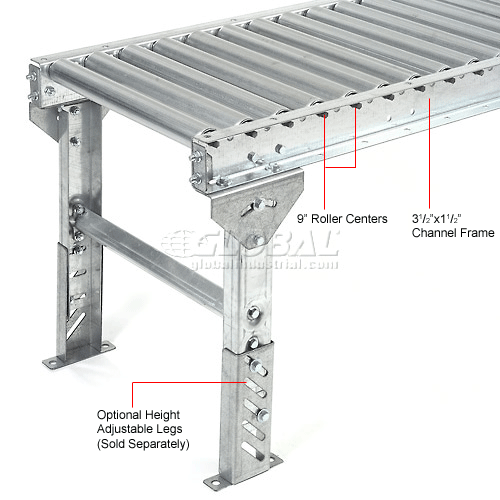

Shown With Optional Floor Supports
Frequently Purchased Together
Price: $635.00
Customers Also Viewed
Omni Metalcraft HEAVY DUTY STEEL 10' LONG STRAIGHT SECTION ROLLER CONVEYOR

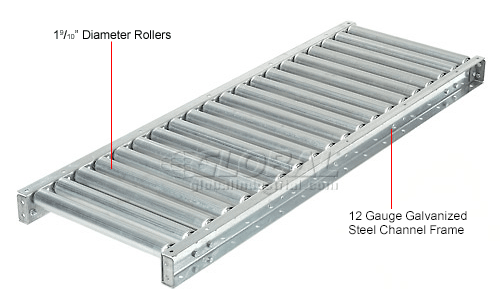

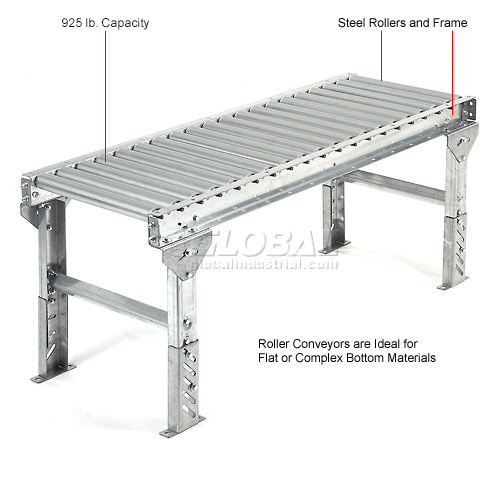

Roller conveyors are ideal for material with flat or complex bottoms. Heavy-duty 1.9" diameter steel rollers and 3-1/2" x 1-1/2" x 12 gauge galvanized steel channel frame. Butt coupling permits bolting sections together. To increase the capacity of 10 ft. sections add center leg support and capacity is equal to two 5 ft. lengths.
Roller conveyors are ideal for material with flat or complex bottoms. Heavy-duty 1.9" diameter steel rollers and 3-1/2" x 1-1/2" x 12 gauge galvanized steel channel frame. Butt coupling permits bolting sections together. To increase the capacity of 10 ft. sections add center leg support and capacity is equal to two 5 ft. lengths.
Weights & Dimensions
- Between Frame Width 24 IN (60.96 cm)
- Width 27 IN (68.58 cm)
- Inside Radius --- IN
- Axle Center 9 IN (22.86 cm)
- Length 10 FT (3.05 m)
- Between Frame Width Range 23 to 27 IN
- Roller Diameter 1.9 IN (4.83 cm)
- Weight Capacity 925 LBS (420.45 kg)
- Weight 117 LBS (53.18 kg)
Product Details
- Assembly Required Assembled
- Type Straight Conveyor
- Brand Omni Metalcraft
- Material Steel
- Manufacturers Part Number GPHS1.9X16-24-9-10-LL
- Conveyor Section Straight
⚌
