Shown With Optional Floor Supports
Frequently Purchased Together
Price: $502.00
Customers Also Viewed

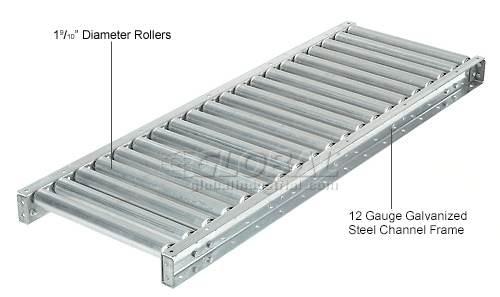

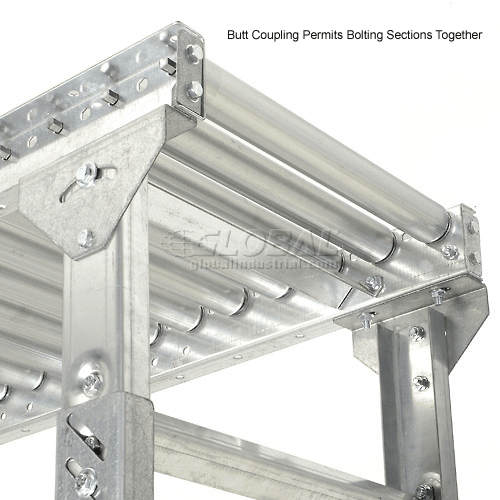

Roller conveyors are ideal for material with flat or complex bottoms. Heavy-duty 1.9" diameter steel rollers and 3-1/2" x 1-1/2" x 12 gauge galvanized steel channel frame. Butt coupling permits bolting sections together. To increase the capacity of 10 ft. sections add center leg support and capacity is equal to two 5 ft. lengths.
Weights & Dimensions
- Between Frame Width 12 in (30.48 cm)
- Width 15 in (38.1 cm)
- Inside Radius --- in

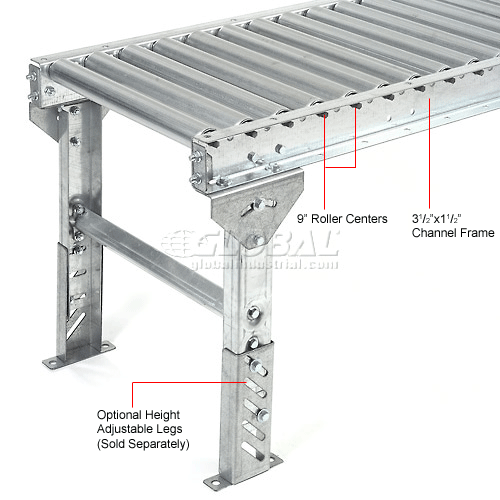

- Axle Center 9 in (22.86 cm)
- Length 10 ft (3.05 m)
- Roller Diameter 1.9 in (4.83 cm)

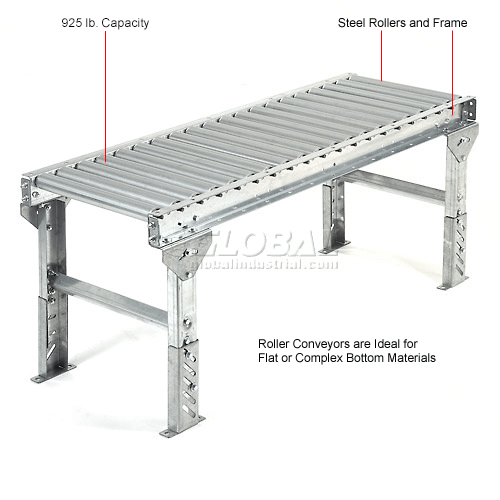

- Weight Capacity 925 lbs (420.45 kg)
- Weight 86 lbs (39.09 kg)
Product Details
- Assembly Required Assembled
- Type Straight Conveyor
- Brand Omni Metalcraft
- Material Steel
- Manufacturers Part Number GPHS1.9X16-12-9-10-LL
- Conveyor Section Straight
There are 2 questions and 2 answers for this product.
-
Is this conveyor 10ft long? What is the difference between this model and the GPHS1.9X16-12-3-10-LL?
Question Asked By: Joe, May 31, 2018
Answer This Question
Question Answered By:
-
anonymous
Hello Joe, yes the conveyor is 10' long. The difference between the two conveyors is GPHS1.9X16-12-9-10-LL has 9" axle center inches and GPHS1.9X16-12-3-10-LL has 3" axle center inches. Axle center inches are defined as the distance between each roller on the conveyor from the center of each roller axle to the center of the next closest roller axle. Thank you for your question.
-
-
I am interest to install this conveyor to load a pontoon in a trailer, it is n a salt water environment. Would this product support the exposure to salt water?
Question Asked By: Rebecca, December 08, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello, unfortunately no, this unit is made of steel and salt water would cause it to rust. A unit made of galvanized steel would last longer, and may be available via special order. Please contact our sales team at 1.888.978.7759 to further assist you. Thank you for your interest in our product.
-
