Marathon Motors Z117, 5HP, 230V, 1800RPM, 1PH, TEFC, 213TZ FR

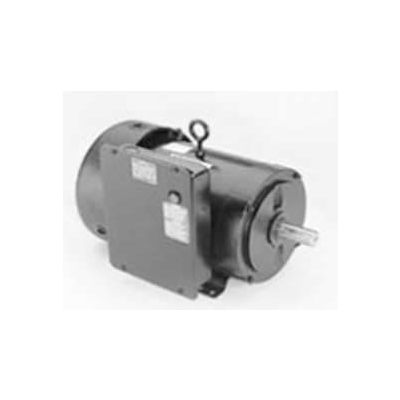

Actual product may differ from image shown

Marathon Motors Z117, 5HP, 230V, 1800RPM, 1PH, TEFC, 213TZ FR

Item #: WBB869397

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,317.00

Quantity

Customers Also Viewed

Marathon Motors Z117, 5HP, 230V, 1800RPM, 1PH, TEFC, 213TZ FR

These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.

  • HORSEPOWER 5
  • ENCLOSURE TEFC
  • FRAME 213TZ
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 1
  • VOLTAGE 230
  • SERVICE FACTOR 1.15
  • THERMAL PROTECTION Manual Protector
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING Ball
  • WEIGHT 119 (54.09 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER Z117
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • FL AMPS 22.6
  • OPPOSITE END BEARING SIZE Ball
  • DRIVE END BEARING SIZE 6307
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END 6307
  • ORIENTATION Horizontal
  • IP CODE 43
  • STARTING TYPE Cap Start Cap Run
  • NEMA DESIGN No Design Code
  • CE Y
  • CATALOG NUMBER Z117
  • FL EFFICIENCY 82.5
  • KVA-CODE K
  • is_motor Yes
  • KILOWATS 3.7
  • MODEL NUMBER 213TBFW7027
