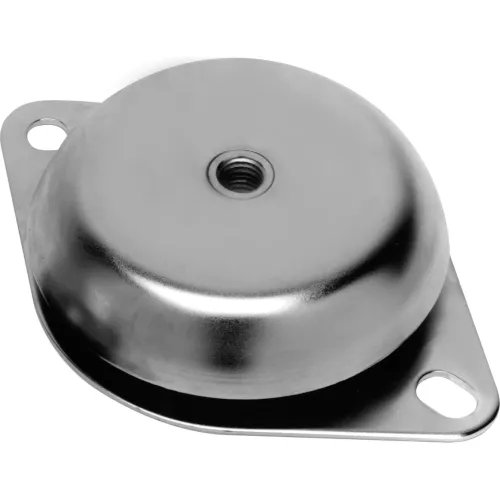

Vibra Systems VSCM-3 - Plated Cup Mount 1400 Max Load Lbs Plated Steel

Vibra Systems VSCM-3 - Plated Cup Mount 1400 Max Load Lbs Plated Steel

Item #: WBB2088318

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $157.95

Quantity

Customers Also Viewed

Vibra Systems VSCM-5 - Plated Cup Mount 3000 Max Load Lbs Plated Steel

Vibra Systems VSCM-5 - Plated Cup Mount 3000 Max Load Lbs Plated Steel

Vibra Systems VSCM-2 - Plated Cup Mount 700 Max Load Lbs Plated Steel

Vibra Systems VSCM-2 - Plated Cup Mount 700 Max Load Lbs Plated Steel

Vibra Systems VP-300 - Antivibration Pad Waffle Design 150-300 psi 18"x18"x1/2"

Vibra Systems VP-300 - Antivibration Pad Waffle Design 150-300 psi 18"x18"x1/2"

Vibra Systems VSCM-060 - Plated Cup Mount 350 Max Load Lbs Plated Steel

Vibra Systems VSCM-060 - Plated Cup Mount 350 Max Load Lbs Plated Steel

Vibra Systems LF 10060 - Low Profile Compression Mount Double Deflection 350 Lbs. Max Load

Vibra Systems LF 10060 - Low Profile Compression Mount Double Deflection 350 Lbs. Max Load

Mastercool® 52224-CC Infrared Thermometer w/ Dual Laser

Mastercool® 52224-CC Infrared Thermometer w/ Dual Laser

VSCM / CMSS Compression-shear cup mount with base provides excellent protection against vibration and shock. Due to this mount's ability to provide isolation to both vertical and horizontal forces it is used in a wide variety of industrial applications. Recommended applications include: Industrial machinery, centrifuges, numerical control equipment, blowers, railroad equipment, converters, transformers, combustion engines, motors, control panels, marine and industrial generator sets, HVAC, pumps, factory production equipment, and where bolting to the floor or intermediate frame is required.

Features:

  • Low profile compact design
  • Excellent vibration dampening characteristics under Vertical compression and shearloads
  • Fitted with snubbing stop washer to allow mild vertical tensile forces
  • Stainless Steel mounts provide excellent corrosion resistance
  • Cup shaped top plate protects elastomer from: oils industrial solvents and chemicals

Weights & Dimensions

  • Deflection 0.225 IN (.57 cm)
  • Width 5-3/16 IN (13.18 cm)
  • Bolt Size 5/8 - 11 IN
  • Max Load 1400 LBS (636.36 kg)
  • Length 7-11/16 IN (19.53 cm)
  • Mount Hole Diameter 4 Top Diameter IN
  • Height 1-11/16 IN (4.29 cm)
  • Mount Height 1.6875 IN (4.29 cm)
  • Weight 2.75 LBS (1.25 kg)

Product Details

  • Brand Vibrasystems
  • Package Quantity 1
  • Material Metal
  • Manufacturers Part Number VSCM-3
  • Color Stainless Steel

Warranty

  • Warranty 6 Months After Installation
