Price: $545.00
Customers Also Viewed
✓ 30" Fan diameter
✓ Moves up to 8000 CFM of air

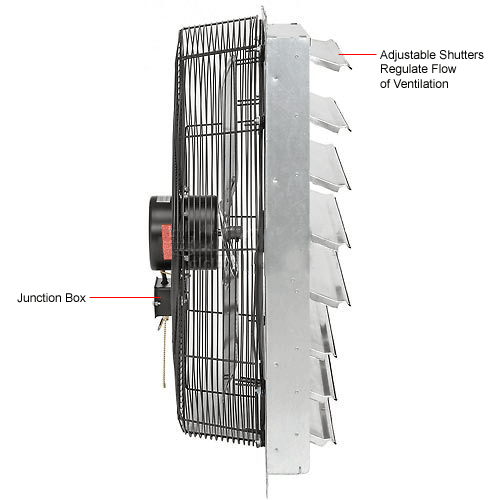

✓ Junction box allows direct wiring

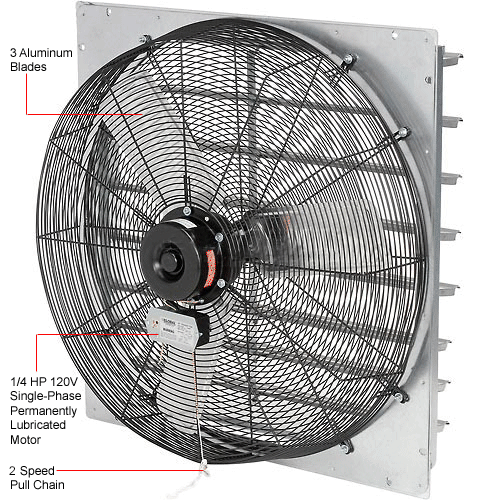

Too much humidity and heat is exhausting. Solve it quickly with the Continental Dynamics® Direct Drive 30" Exhaust Fan With Shutter This industrial exhaust fan features a 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed. Horsepower rating based upon maximum speed/load. 1-Year Limited Warranty.
✓ Moves up to 8000 CFM of air
✓ Junction box allows direct wiring
Too much humidity and heat is exhausting. Solve it quickly with the Continental Dynamics® Direct Drive 30" Exhaust Fan With Shutter This industrial exhaust fan features a 120V, single-phase totally permanently lubricated motors with provisions for direct wiring. These shutter mounted fans install on inside wall and eliminate the need for external framing and shutter. Quiet operation makes it ideal for commercial environments. Aluminum blades are enclosed in a sturdy steel spiral wire guard. Note: Rough-in hole size is 1/2 inch (+/- 5/16) larger than fan blade size. Meets OSHA and UL507 standards. UL, cUL listed. Horsepower rating based upon maximum speed/load. 1-Year Limited Warranty.
Weights & Dimensions
- Rough Opening 30-1/2 in (77.47 cm)
- Width 33 in (83.82 cm)

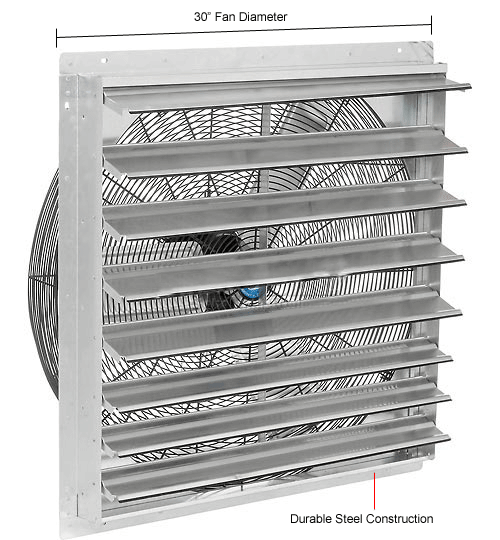

- Fan Diameter 30 in (76.2 cm)
- Cord Length Not Included ft
- Height 33-1/2 in (85.09 cm)
- Depth 9 in (22.86 cm)
- Weight 54 lbs (24.55 kg)
Product Details
- Mounting Location Inside Wall
- Number of Speeds 2
- Assembly Required Unassembled
- Amperage 2.90 A
- Drive Type Direct Drive
- Material Aluminum
- CFM Low 6,300 CFM
- RPM High 1,100 rpm
- Voltage 120 V
- Horsepower 1/4 HP
- CFM High 8000 CFM
- Power Cord Type Hard Wire
- Watts 275 W
- Brand CD
- Max Temperature 104° F °F
- Decibels 76
- Color Black
Compliance & Certifications
- Certifications UL, cUL listed, OSHA & UL507 Compliant
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Rick
Date: August 05, 2022
-
Reviewer: robert
Date: September 23, 2020
Your review:
When I installed two large whole house fans, I installed two 30-inch powered exhaust fans to better vent the attic . The whole system works like a charm. These fans collectively handle a 13K cu ft/min load with ease. I can hear them, but they're not noisy (the whole house fans are much louder, but - hey! - the system runs 15 minute a day). I highly recommend these exhaust fans - they're GREAT! Bob Meigs, Solana Beach, CA -
Reviewer: PAUL
Date: September 16, 2020
Your review:
Awesome exhaust fan, easy install, great purchase! -
Reviewer: LOUIS
Date: June 17, 2020
Your review:
Fan works great, moves the air throughout the house with ease. -
Reviewer: TOM
Date: May 16, 2020
Your review:
Great price, fairly quite, and moves some air!! -
Reviewer: Susan
Date: August 09, 2019
Your review:
Great fan for my workshop. -
Reviewer: Paul
Date: July 14, 2019
Your review:
I'm Happy -
Reviewer: danny
Date: April 23, 2019
Your review:
easy to install, workes great, I suspect it will not last for to many years but for its life span it will be of great value, pulls smoke or heat out of my buildings very well,, I now have 6 installed and will be installing severl more , -
Reviewer: Wade
Date: April 23, 2019
Your review:
This exhaust fan works good. Just like we expected to. -
Reviewer: Joseph TOM
Date: April 23, 2019
Your review:
Product has help up well with two years of daily use,
Product Q & A
There are 3 questions and 3 answers for this product.
-
Do the shutters open and closes automatically from the force of the air when it's turned on and off ?The part about adjusting the shuters is confusing.
Question Asked By: George E, January 28, 2018
Answer This Question
Question Answered By:
-
Product Expert, December 17, 2019
Hello, the fan includes a pull chain cord that controls speed and on/off operation. Thank you for your question.
-
-
I want to put this in my shop. Actually want to put two of them. I want to install them on the back wall top draw the hot dead air in the shop to the outside and get some air circulation in the shop. Will this fan work for that.
Question Asked By: erik, March 28, 2016
Answer This Question
Question Answered By:
-
Product Expert, March 28, 2016
Yes.
-
-
Can this be hook up to a light switch?
Question Asked By: July 10, 2012
Answer This Question
Question Answered By:
-
anonymous
The recommended control for this fan is a thermostat. Part #245823
-
