Digital Cap Torque Tester - 100 lbFin Capacity

Digital Cap Torque Tester - 100 lbFin Capacity

Item #: WBB240042

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $2,073.00

Quantity

Customers Also Viewed

Digital Cap Torque Tester - 100 lbFin Capacity

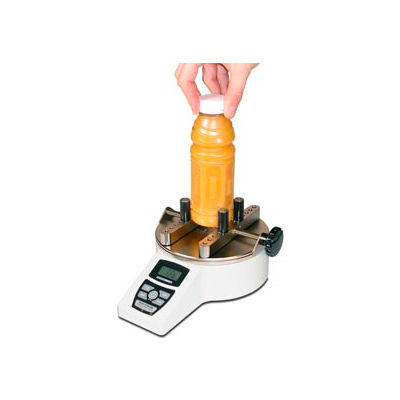

Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.

Class-leading accuracy of +/- 0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications.

The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

Series TT01 testers include MESURTM Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. Data stored in the TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

Features:
  • Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
  • USB, RS-232, Mitutoyo, and analog outputs
  • Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
  • 1,000-point data memory with statistics and outputs
  • Password protection prevents unauthorized changes
  • Programmable set point indicators and outputs for pass/fail determination
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • Configurable audio alarms and key tones
  • 5 selectable units of measurement
  • MESUR™ Lite data collection software included
Includes:
  • Universal voltage AC adapter,
  • Battery
  • Quick-start guide
  • USB cable
  • Resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide)
  • NIST-traceable certificate of calibration with data

Product Specifications

  • CAPACITY100 lbFin
  • HEIGHT INCHES4-13/16 (12.22 cm)
  • RESOLUTION0.05
  • DEPTH INCHES10-11/16 (27.15 cm)
  • MANUFACTURERS PART NUMBERTT01-100
  • WIDTH INCHES7-13/16 (19.84 cm)
  • WEIGHT LBS8.4 (3.82 kg)
  • CONSTRUCTIONAluminum Housing
  • ACCURACY+/- 0.3 Percent of Full Scale
  • JAW SIZE INCHES5-29/32 (Outer), 4-13/32 (Inner)
  • BATTERY LIFE24 Hours (Backlight Off), 7 Hours (Backlight On)
  • CAPACITY LBS100 (45.45 kg)
  • BRANDMark-10®
Customer Review

Not Yet Reviewed

Product Q & A

There are 1 questions and 1 answer for this product.

  • I have a small bottle with a diameter of just above a 1/4 ". Can this fit into unit? The optional flat jaws - is that an additional cost & how do I get that info.? Does this flat jaw allow for this small size?

    Question Asked By: Kel, November 02, 2016

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Kel, This model would not work with your 1/4" Bottle. The optional flat jaws would work though there are gripping jaws that may work better for your bottle. These additional parts can be ordered through our sales team. Thank you for your interest in our product!
