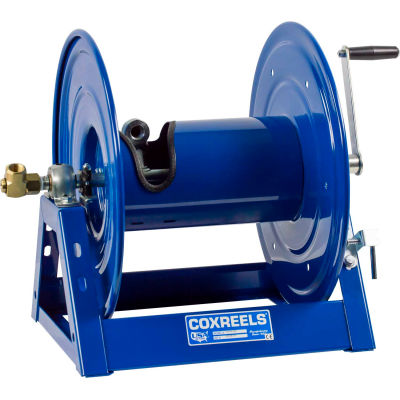

Coxreels 1125-4-100 1/2"x100' 3000 PSI Hand Crank Medium Pressure Hose Reel

Hose Not Included

Coxreels 1125-4-100 1/2"x100' 3000 PSI Hand Crank Medium Pressure Hose Reel

Item #: WBB584525

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$402.04 up to 8% OFF

Price: $369.95

Quantity

Customers Also Viewed

Coxreels 1125-4-100 1/2"x100' 3000 PSI Hand Crank Medium Pressure Hose Reel

COXREELS® 1125 Series hand crank and motorized hose reels have the features demanded by industry professionals. The industry preferred design features a sturdy one piece all welded "A" frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.

External fluid path with machined from solid brass 90° full-flow NPT swivel inlet (Nickel plated steel swivel on 1" models) Swivel Seals: NITRILE (AFLAS on 1" models) ~External fluid path with electroless nickel plated steel 90° full-flow NPT swivel inlet (On high pressure HP prefix models) Swivel Seals: AFLAS (On high pressure HP prefix models)

All welded steel "A" frame construction for superior reel structure Exclusive low profile outlet riser & open drum slot design for flat smooth hose wrap Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation Adjustable tension brake to prevent "free-wheeling" during operation Long-handled locking pin to secure reel from rotation during transport or storage

Reliable direct gear drive on motor driven models providing quiet & smooth retraction - No chain Solid steel direct hand crank with smooth round handle

Features:

  • Professional grade heavy duty steel construction. Durable proprietary CPC™ powder coat process. Rolled edges & ribbed discs provide strength & safety. Leading 2-year manufacturer's limited warranty. Made in the U.S.A. - Sold & Supported Worldwide
  • SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
  • CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
  • OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
  • "A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
  • PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
  • OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.
  • Permanently Lubricated Self Aligning Pillow Block Bearings

Product Specifications

  • LENGTH INCHES17-5/8 (44.77 cm)
  • WIDTH INCHES21-3/4 (55.25 cm)
  • HEIGHT INCHES18-3/4 (47.63 cm)
  • SERIES1125
  • HOSE MATERIALNot Included
  • BRANDCoxreels®
  • REEL HOSE/CABLE LENGTH CAPACITY FEET100 (30.48 m)
  • TYPEHose Reel
  • INLET1/2"
  • MAX. TEMPERATURE°F 250
  • CONSTRUCTIONSteel
  • COLOR FINISHBlue
  • MANUFACTURERS LIMITED WARRANTY YEARS2
  • HOSE ID"1/2
  • OPEN OR ENCLOSED CHASSISOpen
  • MANUFACTURERS PART NUMBER1125-4-100
  • PSI3000
  • HOSE/ CORD LENGTH FEET100 (30.48 m)
  • TEMPERATURE RANGE°F -40 to 250
  • DRIVE / RETURN TYPEHand Crank
  • APPLICATIONAir,Water,Washdown,Pressure Wash,Chemical,Oil
  • WEIGHT LBS36 (16.36 kg)
  • CABLE/CORD/HOSE INCLUDEDNo
