Minimum Quantity: 59
Price: $5.70
Customers Also Viewed

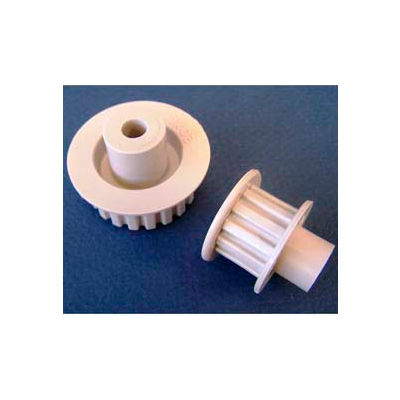

Plastock® Timing Belt Pulleys 38MDF, Acetal, Double Flange, 0.0816 Pitch, 38 Teeth
Features
Features
- Plastock Timing Belt Pulleys are injection molded Polycarbonate or Acetal
- 0.0800 Pitch (MXL)
- 0.0816 Pitch (40DP)
- 1/5 Pitch (XL)
- 3/8 Pitch (L)
- 3 & 5MM Pitch (HTD)
- Available in Single and Double Flange, with or without aluminum hubs.
Weights & Dimensions
- Hub Diameter H 11/16 IN
- Flange (Fd) 1.16 IN (2.95 cm)
- Width 5/16 IN
- Stock Bore (B) 1/4 IN
- Diameter 0.974 IN (2.47 cm)
- Hub Proj. 1/4 IN
- For Belt Size Up To 1/4 IN
- Length 11/16 IN
- Pitch 0.0816 (40DP) IN
- Pitch Diameter 0.988 IN (2.51 cm)
- Weight 0.020 LBS (.01 kg)
Product Details
- Flange Double
- Brand Plastock
- Material Acetal
- Manufacturers Part Number 38MDF
- Number of Teeth 38
