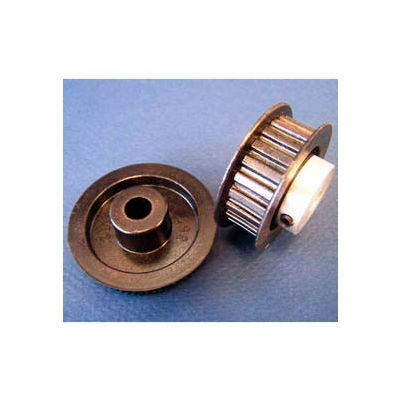

Plastock® Timing Belt Pulleys 22T0800DFAH1S, Lexan, AL Hub, Double Flange, 0.8 Pitch, 22 Teeth
Features
Features
- Plastock Timing Belt Pulleys are injection molded Polycarbonate or Acetal
- 0.0800 Pitch (MXL)
- 0.0816 Pitch (40DP)
- 1/5 Pitch (XL)
- 3/8 Pitch (L)
- 3 & 5MM Pitch (HTD)
- Available in Single and Double Flange, with or without aluminum hubs.
Weights & Dimensions
- Hub Diameter H 1/2 IN
- Flange (Fd) 0.73 IN (1.85 cm)
- Width 5/16 IN
- Stock Bore (B) 0.187 IN (.47 cm)
- Set Screw Size #6-32
- Diameter 0.54 IN (1.37 cm)
- Hub Proj. 1/4 IN
- For Belt Size Up To 1/4 IN
- Length 11/16 IN
- Pitch 0.8 (MXL) IN
- Pitch Diameter 0.56 IN (1.42 cm)
- Weight 0.018 LBS (.01 kg)
Product Details
- Flange Double
- Brand Plastock
- Material Lexan W/Aluminum Hub
- Manufacturers Part Number 22T0800DFAH1S
- Number of Teeth 22
