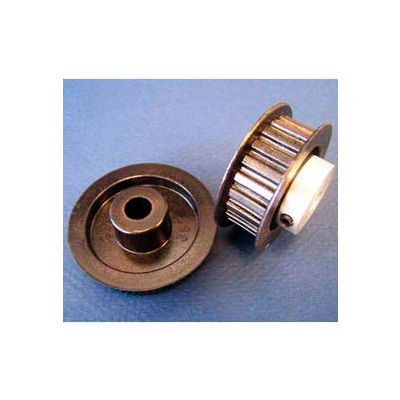

Plastock® Timing Belt Pulleys 15XL037DFAH1S, Lexan, AL Hub, Double Flange, 1/5 Pitch, 15 Teeth
Features
Features
- Plastock Timing Belt Pulleys are injection molded Polycarbonate or Acetal
- 0.0800 Pitch (MXL)
- 0.0816 Pitch (40DP)
- 1/5 Pitch (XL)
- 3/8 Pitch (L)
- 3 & 5MM Pitch (HTD)
- Available in Single and Double Flange, with or without aluminum hubs.
Weights & Dimensions
- Hub Diameter H 0.75 IN (1.91 cm)
- Flange (Fd) 1.19 IN (3.02 cm)
- Width 0.44 IN (1.12 cm)
- Stock Bore (B) 0.25 IN (.64 cm)
- Set Screw Size 8-32
- Diameter 0.935 IN (2.37 cm)
- Hub Proj. 0.25 IN (.64 cm)
- For Belt Size Up To 3/8 IN
- Length 13/16 IN
- Pitch 1/5 (XL) IN
- Pitch Diameter 0.955 IN (2.43 cm)
- Weight 0.043 LBS (.02 kg)
Product Details
- Flange Double
- Brand Plastock
- Material Lexan W/Aluminum Hub
- Manufacturers Part Number 15XL037DFAH1S
- Number of Teeth 15
