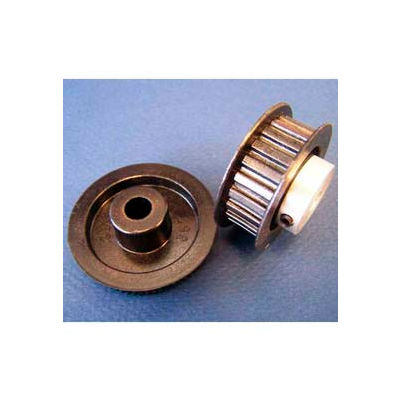

Plastock® Timing Belt Pulleys 12XL037DFAHIS, Lexan, AL Hub, Double Flange, 1/5 Pitch, 12 Teeth
Features
Features
- Plastock Timing Belt Pulleys are injection molded Polycarbonate or Acetal
- 0.0800 Pitch (MXL)
- 0.0816 Pitch (40DP)
- 1/5 Pitch (XL)
- 3/8 Pitch (L)
- 3 & 5MM Pitch (HTD)
- Available in Single and Double Flange, with or without aluminum hubs.
Weights & Dimensions
- Hub Diameter H 0.69 IN (1.75 cm)
- Flange (Fd) 0.99 IN (2.51 cm)
- Width 0.44 IN (1.12 cm)
- Stock Bore (B) 0.187 IN (.47 cm)
- Hub Proj. 0.25 IN (.64 cm)
- Set Screw Size 6-32
- Diameter 0.744 IN (1.89 cm)
- For Belt Size Up To 3/8 IN
- Length 13/16 IN
- Pitch 1/5 (XL) IN
- Pitch Diameter 0.764 IN (1.94 cm)
- Weight 0.031 LBS (.01 kg)
Product Details
- Flange Double
- Brand Plastock
- Material Lexan W/Aluminum Hub
- Manufacturers Part Number 12XL037DFAHIS
- Number of Teeth 12
