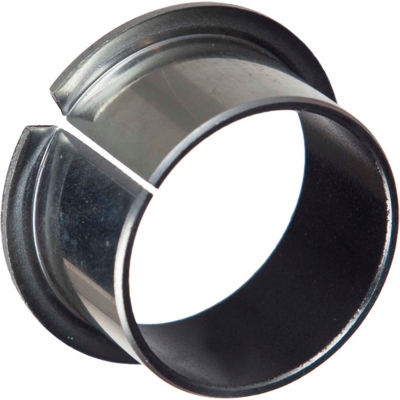

Isostatic TU® Steel-Backed PTFE Flange Bearing 702022, 18mm ID X 20mm OD X 12mm Long
Features
Features
- Self-lubricating dry sliding bearing
- Ideal for heavy loads at moderate speeds or light loads at high speeds
- Temperature range of -328°F to +536°F
- A steel-backed composite material comprised of low carbon steel, sintered bronze and PTFE lined
- Load at Speed - PV Max Value (PSI / SFM) = 50,000
- Load - P Max Value = 2,000 lb/in²
- Speed - V Max Value = 1,200 ft²/min
Weights & Dimensions
- Speed - V Max Value 1,200 ft²/min
- Flange Nominal Thickness 1 MM
- Load P Max Value 2,000 lb/in²
- Nominal Outside Diameter 20 MM
- Nominal Length 12 MM
- Nominal Inner Diameter 18 MM
Product Details
- Flange Nominal OD 26 MM
- Description Flange Bearing - METRIC
- Load @ Speed Pv Max Value (PSI/SFM) 50,000
- Brand Isostatic
- Series Isostatic
- Material Steel-Backed PTFE Lined
- Manufacturers Part Number 702022
- Catalog Number FM1812TU
