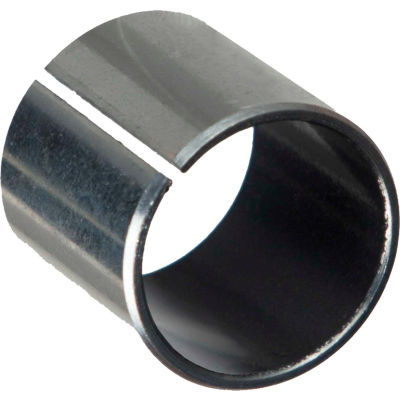

Isostatic TU® Sleeve Bearing 501105, Steel-Backed PTFE Lined, 2-1/2"ID X 2-11/16"OD X 1-5/8"L
Features
Features
- Self-lubricating dry sliding bearing
- Ideal for heavy loads at moderate speeds or light loads at high speeds
- Temperature range of -328°F to +536°F
- A steel-backed composite material comprised of low carbon steel, sintered bronze and PTFE lined
- Load at Speed - PV Max Value (PSI / SFM) = 102,000
- Load - P Max Value = 36,250 lb/in²
- Speed - V Max Value = 1,900 ft²/min
Weights & Dimensions
- Speed - V Max Value 1,900 ft²/min
- Nominal Outer Diameter 2-11/16 IN (6.83 cm)
- Load P Max Value 36,250 lb/in²
- Nominal Length 1-5/8 IN (4.13 cm)
- Nominal Inner Diameter 2-1/2 IN (6.35 cm)
Product Details
- Brand Isostatic
- Description Sleeve Bearing - INCH
- Series TU®
- Material Steel-Backed PTFE Lined
- Manufacturers Part Number 501105
- Catalog Number 40TU26
- Load @ Speed Pv Max Value (PSI/SFM) 102,000
