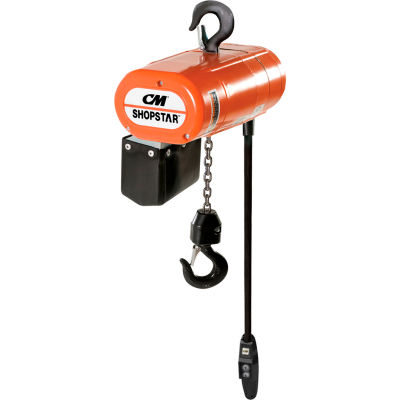

CM® ShopStar 300 Lb. Electric Chain Hoist, 10' Lift, 16 FPM, 110V

CM® ShopStar 300 Lb. Electric Chain Hoist, 10' Lift, 16 FPM, 110V

Item #: WBB680767

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $3,091.00

Quantity

Customers Also Viewed

CM® Shopstar 1/4 Ton, Electric Chain Hoist, 10' Lift, 12 FPM, 110V

CM® Shopstar 1/4 Ton, Electric Chain Hoist, 10' Lift, 12 FPM, 110V

Global Industrial™I Beam Trolley 1,000 Pound Capacity

Global Industrial™I Beam Trolley 1,000 Pound Capacity

Interion® Straight Connector Kit For Office Partitions

Interion® Straight Connector Kit For Office Partitions

CM Valustar 1/4 Ton, Electric Chain Hoist W/ Chain Container, 15' Lift, 16 FPM, 115V

CM Valustar 1/4 Ton, Electric Chain Hoist W/ Chain Container, 15' Lift, 16 FPM, 115V

CM Lodestar 1 Ton, Electric Chain Hoist W/ Chain Container, 20' Lift, 16 FPM, 115V

CM Lodestar 1 Ton, Electric Chain Hoist W/ Chain Container, 20' Lift, 16 FPM, 115V

CM Lodestar 2 Ton, Electric Chain Hoist W/ Chain Container, 20' Lift, 8 FPM, 230/460V

CM Lodestar 2 Ton, Electric Chain Hoist W/ Chain Container, 20' Lift, 8 FPM, 230/460V

Global Industrial™ Sling, Eye & Eye, 6 Ft L x 2 In W, 6400/5000/12800 Lbs Cap

Global Industrial™ Sling, Eye & Eye, 6 Ft L x 2 In W, 6400/5000/12800 Lbs Cap

Global Industrial™ Mobile Reversible Whiteboard with Silver Frame, 72"W x 48"H

Global Industrial™ Mobile Reversible Whiteboard with Silver Frame, 72"W x 48"H

Global Industrial™ 2 Head Round LED Emergency Light w/ Adjustable Optics, Ni-Cad Battery Backup

Global Industrial™ 2 Head Round LED Emergency Light w/ Adjustable Optics, Ni-Cad Battery Backup

EXPO® Dry Erase Surface Cleaner, 8 Oz. Spray Bottle

EXPO® Dry Erase Surface Cleaner, 8 Oz. Spray Bottle

Global Industrial™ 11 Pockets - Medical Chart Hanging Wall File Holder - Black

Global Industrial™ 11 Pockets - Medical Chart Hanging Wall File Holder - Black

ShopStar Electric Chain Hoist, 300 Lbs. Cap., 16 FPM, 10Ft. Lift, 110V w/Fabric Chain Bags, 3-3/8"L

Features:

  • H4 duty cycle (300 motor starts/hour)
  • Easy installation and maintenance
  • Standard protector overload device
  • 10 pocket oblique lay liftwheel provides longer chain wear
  • Epoxy powder coat finish
  • 6-1/2 ft. power cord with molded 3 prong plug on 115 volt units
  • NEMA 4 industrial rated control station
  • Optional impact-resistant chain container available
  • Gear train lifetime lubricated with non-oxidizing grease
  • CM Hoist Alloy Load Chain (zinc plated optional)
  • Thermally protected hoist duty motor
  • Dual braking system - D.C. plus regenerative
  • Rugged cast aluminum alloy hoist frame
  • 5:1 design factor
  • Small, compact design for commercial & industrial applications
  • Rigid hook suspension prevents tangling of power cord
  • Hardened forged steel latch style lower hook rotates 360°
  • Totally enclosed non-ventilated hoist frame protects motor from environmental contamination
  • True vertical lift
  • Precision bearings used throughout hoist
  • Lifetime warranty
  • Made in U.S.A.
  • Also includes chain containers that are recommended wherever the tail chain should be kept up out of the way to prevent fouling the load or the hazard of looped chain. Chain feeds into and out of the container without kinking or twisting.

Weights & Dimensions

  • Head Room 11-3/16 IN (28.42 cm)
  • Lift 10 FT (3.05 m)
  • Width 5-15/16 IN (15.08 cm)
  • Length 9-13/16 IN (24.92 cm)
  • Lift Speed 16 FT/MIN
  • Control Cord Length 8 FT (2.44 m)
  • Height 11-3/16 IN (28.42 cm)
  • Weight Capacity 300 LBS (136.36 kg)
  • Weight 28 LBS (12.73 kg)

Product Details

  • Voltage 110 V
  • Assembly Required Assembled
  • Horsepower 1/6 HP
  • Type Chain Hoist
  • UPC 043927253111
  • Brand CM
  • Series Shopstar
  • Material Steel
  • Manufacturers Part Number 2047/2063
  • Color Family Orange

Warranty

  • Warranty Lifetime

Compliance & Certifications

  • Certifications ASME B30.16
