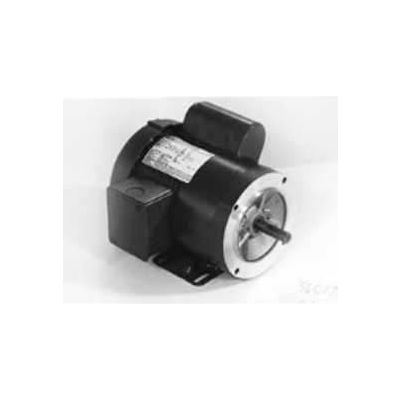

Marathon Motors Pressure Washer Motor, K016, 56B17D56, 3/4HP, 115/208-230V, 1800RPM, 1PH, 56 FR

Marathon Motors Pressure Washer Motor, K016, 56B17D56, 3/4HP, 115/208-230V, 1800RPM, 1PH, 56 FR

Item #: WBB868642

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $479.95

Quantity

Customers Also Viewed

Marathon Motors Pressure Washer Motor, K016, 56B17D56, 3/4HP, 115/208-230V, 1800RPM, 1PH, 56 FR

Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages.

  • HORSEPOWER 3/4
  • ENCLOSURE DP
  • FRAME 56
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 1
  • VOLTAGE 115/208-230
  • THERMAL PROTECTION Manual Protector
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Open/Drip Proof
  • OPPOSITE END BEARING Ball
  • UL Recognized Construction and Protector
  • CSA Y
  • CATALOG NO. K016
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER K016
  • RPM RANGE 1701-1800
  • INSULATION CLASS B
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6203
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END Ball
  • ORIENTATION Horizontal
  • IP CODE 22
  • STARTING TYPE Cap Start Cap Run
  • NEMA DESIGN No Design Code
  • KVA-CODE K
  • is_motor Yes
  • WEIGHT IN LBS. 25 (11.36 kg)
  • 60 HERTZ SF 1.25
  • 60 HERTZ FL AMPS 11/5.5
  • 60 HERTZ kW 0.56
  • MODEL NUMBER 56B17D56
