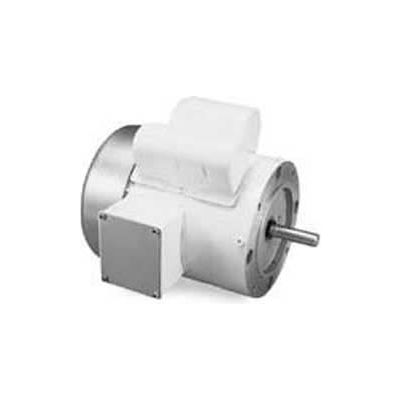

Marathon Motors PowerWash™ Washdown Motor, N543, 1HP, 115/208-230V, 1800RPM, 1PH, TEFC

Marathon Motors PowerWash™ Washdown Motor, N543, 1HP, 115/208-230V, 1800RPM, 1PH, TEFC

Item #: WBB868975

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $759.00

Quantity

Marathon Motors PowerWash™ Washdown Motor, N543, 1HP, 115/208-230V, 1800RPM, 1PH, TEFC

Marathon's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electrostatically applied epoxy finish, paint free with major components in 300 series.

  • HORSEPOWER 1
  • ENCLOSURE TEFC
  • FRAME 56C
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 1
  • VOLTAGE 115/208-230
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6203
  • WEIGHT 34 (15.45 kg)
  • UL N
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER N543
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • FL AMPS 12.8/6.4
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6205
  • ASSEMBLY F1 Only
  • BEARING-DRIVE-END Ball
  • ORIENTATION Horizontal
  • IP CODE 55
  • STARTING TYPE Cap Start Ind Run
  • NEMA DESIGN N
  • CE N
  • CATALOG NUMBER N543
  • FL EFFICIENCY 75
  • KVA-CODE K
  • is_motor Yes
  • 60 HERTZ kW 0.75
  • MODEL NUMBER 5617W5334
