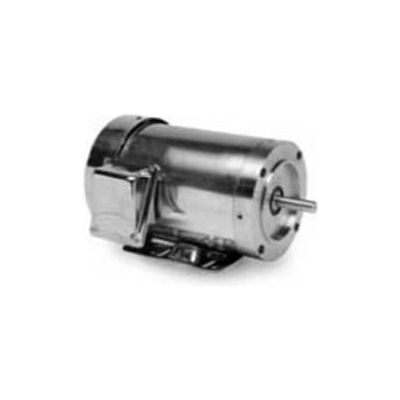

Marathon Motors PowerWash™ Washdown Motor, N411, 1/2HP, 208-230/460V, 1800RPM, 3PH, TENV

Marathon Motors PowerWash™ Washdown Motor, N411, 1/2HP, 208-230/460V, 1800RPM, 3PH, TENV

Item #: WBB869150

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $640.00

Quantity

Customers Also Viewed

Marathon Motors PowerWash™ Washdown Motor, N411, 1/2HP, 208-230/460V, 1800RPM, 3PH, TENV

Marathon's Washdown Duty Motors are available from stock in single and three phase AC and in DC designs. Horsepowers range from 1/2 to 20. Designs include motors having an electrostatically applied epoxy finish, paint free with major components in 300 series.

  • HORSEPOWER 1/2
  • ENCLOSURE TENV
  • FRAME 56C
  • BRAND Marathon Motors
  • MOUNTING C-Face Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 208-230/460
  • HERTZ 60/50
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6205
  • WEIGHT 31 (14.09 kg)
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER N411
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • FL AMPS 1.5-1.6/.8
  • OPPOSITE END BEARING SIZE 6205
  • DRIVE END BEARING SIZE 6205
  • ASSEMBLY F1 (F2 Modification Available)
  • BEARING-DRIVE-END Ball
  • ORIENTATION Horizontal
  • IP CODE 55
  • STARTING TYPE Across the Line
  • NEMA DESIGN B
  • CE Y
  • 50 Hertz RPM 1500
  • 50 Hertz kW 246
  • 50 Hertz HP 1/3
  • CATALOG NUMBER N411
  • 50 Hertz SF 1.15
  • FL EFFICIENCY 81.5
  • 50 Hertz FL Amps 1.6/.8
  • 50 Hertz Voltage 190/380
  • KVA-CODE L
  • is_motor Yes
  • 60 HERTZ kW 0.37
  • MODEL NUMBER 56T17VD5328
