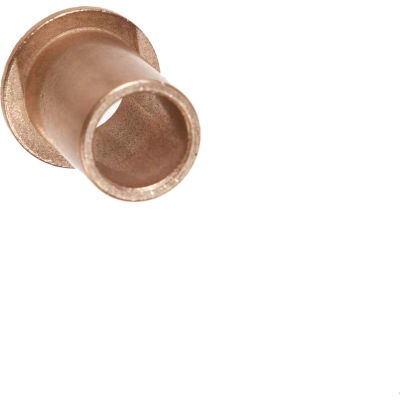

Oilube® Powdered Bronze SAE841 Flange Bearing 302052, 5/8"ID X 3/4"OD X 1"L X 1/8"Thick
Features
Features
- Powdered metal bronze - self lubricating; vacuum impregnated with SAE 30 weight oil
- Ideal for heavy loads at moderate speeds or light loads at high speeds
- SAE 841-copper (87-90%), tin (8-9%), other elements
- RoHS compliant
- REACH compliant
- Load at Speed - PV Max Value (PSI / SFM) = 50,000
- Load - P Max Value = 2,000 lb/in²
- Speed - V Max Value = 1,200 ft²/min
Weights & Dimensions
- Speed - V Max Value 1,200 ft²/min
- Flange Nominal Thickness 1/8 IN
- Load P Max Value 2,000 lb/in²
- Nominal Length 1 IN (2.54 cm)
- Nominal Inner Diameter 5/8 IN
- Nominal Outer Diameter 3/4 IN
Product Details
- Flange Nominal OD 1 IN (2.54 cm)
- Description Flange Bearing - INCH
- Load @ Speed Pv Max Value (PSI/SFM) 50,000
- Brand Isostatic
- Series Oilube®
- Material Bronze SAE 841
- Manufacturers Part Number 302052
- Catalog Number FB-1012-8
