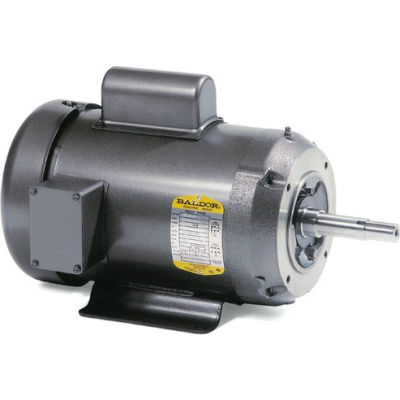

Baldor-Reliance Motor JML1409T, 5HP, 3500RPM, 1PH, 60HZ, 184JM, 3634LC, OPEN, F

Actual product may differ from image shown

Baldor-Reliance Motor JML1409T, 5HP, 3500RPM, 1PH, 60HZ, 184JM, 3634LC, OPEN, F

Item #: WBB389034

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$1,745.18 up to 6% OFF

Price: $1,635.00

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,3500RPM,1PH,60HZ,184JM,3634LC,OPEN,F

Features:
  • Heavy gauge steel frame construction
  • Corrosion resistant finish
  • Ball bearings
  • Suitable for mounting in any position
Typical Applications:
Many pumping systems where only single phase power is available.

Product Specifications

  • HORSEPOWER5
  • ENCLOSUREOPEN
  • FRAME184JM
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz3500
  • RPM3500
  • PHASE1
  • VOLTAGE230
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPEOpen/Drip Proof
  • WEIGHT78
  • RPM RANGE3001-3600
  • MANUFACTURER PART NUMBERJML1409T
  • 208V AMPS23
  • is_motorYes
  • KVA-CODEH
  • POWER-FACTOR96
  • FL EFFICIENCY80
  • SERIAL-NUMBER--
  • SPEC. NUMBER36M927W925G1
  • BEARING-DRIVE-END6207
  • DESIGN CODEL
  • DOE-CODE--
  • FL AMPS21.5
  • BEARING-OPP-DRIVE-END6205
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES16.5 (41.91 cm)
  • POLES2
  • INSULATION CLASSF
