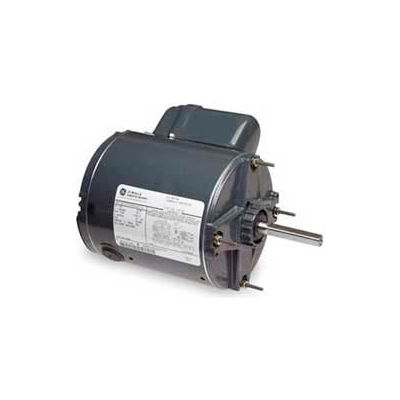

Marathon Motors P251, 1/2HP, 115/230V, 1075RPM, 1PH, TENV, 48Z FR

Actual product may differ from image shown

Marathon Motors P251, 1/2HP, 115/230V, 1075RPM, 1PH, TENV, 48Z FR

Item #: WBB868843

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $296.95

Quantity

Customers Also Viewed

Marathon Motors P251, 1/2HP, 115/230V, 1075RPM, 1PH, TENV, 48Z FR

These motors are designed for many of the varied applications found on the farm. Designs include motors suitable for aeration fans, auger drives, grain stirring, metering pumps, instant reversing, irrigation tower drives, and crop driers.

  • HORSEPOWER 1/2
  • ENCLOSURE TENV
  • FRAME 48Z
  • BRAND Marathon Motors
  • MOUNTING Resilient Base/Stud
  • MOTOR RPM 60Hz 1075
  • RPM 1075
  • PHASE 1
  • VOLTAGE 115/230
  • SERVICE FACTOR 1
  • THERMAL PROTECTION Automatic
  • AMBIENT TEMP C 40
  • ROTATION CCW
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING Ball
  • WEIGHT 18 (8.18 kg)
  • UL Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER P251
  • RPM RANGE 1001-1100
  • INSULATION CLASS B
  • FL AMPS 7.2/3.6
  • OPPOSITE END BEARING SIZE Ball
  • DRIVE END BEARING SIZE 6203
  • BEARING-DRIVE-END 6203
  • ORIENTATION Horizontal or Vertical
  • STARTING TYPE Squirrel Cage Induction
  • CATALOG NUMBER P251
  • FL EFFICIENCY 0
  • is_motor Yes
  • KVA-CODE D
  • MODEL NUMBER 5KCP36NNB059S
