Price: $2,023.00
Quantity Discount
- Buy 1-3 $2,023.00 ea.
- Buy 4+ $1,945.00 ea.
Customers Also Viewed

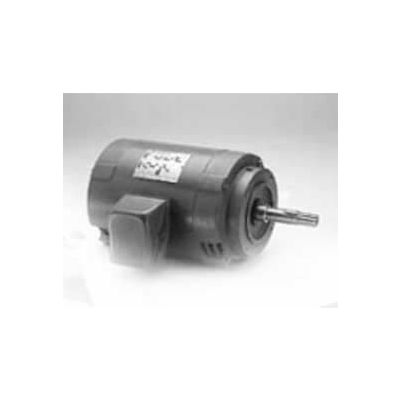

Marathon Motors Multi-Speed Motor, Y455, 215TTDW7204, 5 - 2.22HP, 1800/1200RPM, 200-230V, 3PH
Commercial and industrial fans, blowers, pumps, and other machinery that have variable torque characteristics. Prolonged use at low speed can result in significant energy saving. Dripproof motors are intended for use in environments that are relatively clean and dry.
Commercial and industrial fans, blowers, pumps, and other machinery that have variable torque characteristics. Prolonged use at low speed can result in significant energy saving. Dripproof motors are intended for use in environments that are relatively clean and dry.
- HORSEPOWER 5
- ENCLOSURE DP
- FRAME 215T
- BRAND Marathon Motors
- MOUNTING Rigid
- MOTOR RPM 60Hz 1800
- RPM 1800
- PHASE 3
- VOLTAGE 200-230
- AMBIENT TEMP C 40
- ENCLOSURE TYPE Open/Drip Proof
- OPPOSITE END BEARING Ball
- UL Recognized Construction
- CSA Y
- CATALOG NO. Y455
- DUTY Continuous
- MANUFACTURERS PART NUMBER Y455
- RPM RANGE 1701-1800
- INSULATION CLASS F
- LOW SPEED RPM 1200
- LOW SPEED KW 1.66
- LOW SPEED HP 2.22
- HIGH SPEED SF 1.15
- LOW SPEED FL SF 1.15
- LOW SPEED FL AMPS 7.3-7-7
- LOW SPEED VOLTAGE 200-230
- LOW SPEED FL EFF 0.815
- HIGH SPEED KW 3.70
- HIGH SPEED FL AMPS 14.5-13-13
- HIGH SPEED FL EFF 0.855
- OPPOSITE END BEARING SIZE 6206
- DRIVE END BEARING SIZE 6307
- ASSEMBLY F1 (F2 Modification Available)
- BEARING-DRIVE-END Ball
- ORIENTATION Horizontal
- IP CODE 22
- STARTING TYPE Across the Line
- NEMA DESIGN 2VT
- CE Y
- KVA-CODE L
- WEIGHT IN LBS. 116 (52.73 kg)
- MODEL NUMBER 215TTDW7204
