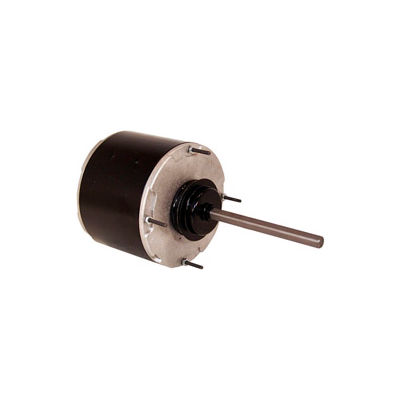

Century FEH1056SF, 5 5/8" HeatMaster Motor - 460 Volts 1075 RPM

Century FEH1056SF, 5 5/8" HeatMaster Motor - 460 Volts 1075 RPM

Item #: WBB186470

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $301.95

Quantity

Customers Also Viewed

Century 5 5/8" HeatMaster Motor - 460 Volts 1075 RPM

  • 70ºC (158ºF) max ambient
  • UL/CSA approved Class F insulation
  • High-temperature UL/CSA approved overload protector
  • 3-Year Limited Warranty from date of manufacture date code, or 2 years from
  • the date of installation
  • Energy-efficient PSC design
  • Water-resistant reversing plug
  • Double sealed ball bearing, or dependable all-angle sleeve bearings
  • All-angle mount
  • Mounts by belly band, adjustable extended thru-bolts, or Rheem
  • mounting holes, with screws supplied
  • Lead length 36
  • 60 HZ
  • 48 Frame
  • Totally Enclosed
  • Single Speed
  • Continuous duty, air over
  • UL and CSA recognized


Product Specifications

  • BRANDCentury
  • MANUFACTURERS PART NUMBERFEH1056SF
  • HORSEPOWER1/2
  • MOTOR RPM 60Hz1075
  • VOLTAGE460
  • PHASE1
  • FRAME48
  • ENCLOSURE TYPETotally Enclosed
  • HERTZ60
  • SPEEDS1
  • ROTATIONCCW/CW
  • RATED RPM1075
  • MOUNTINGBelly Band
  • FULL LOAD AMPS1.5
  • SHAFT DIAMETER0.5
  • SHAFT LENGTH3-3/8
  • BEARING TYPEBall
  • SERVICE FACTOR1
  • LENGTH LESS SHAFT INCHES5.61 (14.25 cm)
  • APPROVALS OR CERTIFICATIONSUL and CSA
  • is_motorYes
  • RPM RANGE1001-1100
  • HERTZ (HZ)60
  • MOTOR TYPEN/A
