Price: $249.95
Customers Also Viewed

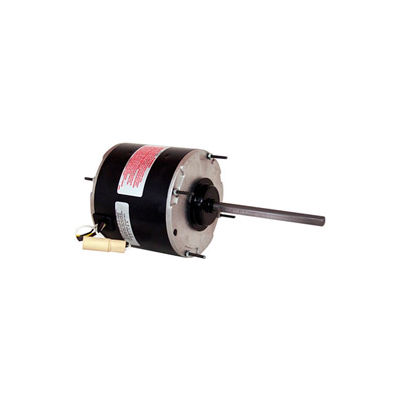

Century 5 5/8" HeatMaster Motor - 208-230 Volts 825 RPM
- 70ºC (158ºF) max ambient
- UL/CSA approved Class F insulation
- High-temperature UL/CSA approved overload protector
- 3-Year Limited Warranty from date of manufacture date code, or 2 years from
- the date of installation
- Energy-efficient PSC design
- Water-resistant reversing plug
- Double sealed ball bearing, or dependable all-angle sleeve bearings
- All-angle mount
- Mounts by belly band, adjustable extended thru-bolts, or Rheem
- mounting holes, with screws supplied
- Lead length 36
- 60 HZ
- 48 Frame
- Totally Enclosed
- Single Speed
- Continuous duty, air over
- UL and CSA recognized
Product Specifications
- BRANDCentury
- MANUFACTURERS PART NUMBERFSE1038SF
- HORSEPOWER1/3
- MOTOR RPM 60Hz825
- VOLTAGE208-230
- PHASE1
- FRAME48
- ENCLOSURE TYPETotally Enclosed
- HERTZ60
- SPEEDS1
- ROTATIONCCW/CW
- RATED RPM825
- MOUNTINGC-Face
- FULL LOAD AMPS2.1
- SHAFT DIAMETER0.5
- SHAFT LENGTH6
- BEARING TYPESleeve
- LENGTH LESS SHAFT INCHES4.86 (12.34 cm)
- APPROVALS OR CERTIFICATIONSUL and CSA
- is_motorYes
- RPM RANGE0-1000
- HERTZ (HZ)60
- MOTOR TYPEN/A
