C Frame Utility Motor Kit/ 120 V 3000 rpm

C Frame Utility Motor Kit/ 120 V 3000 rpm

Item #: WBB434594

(15)

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $17.00

Quantity Discount

  • Buy 1-3 $17.00 ea.
  • Buy 4+ $14.50 ea.

Quantity

Customers Also Viewed

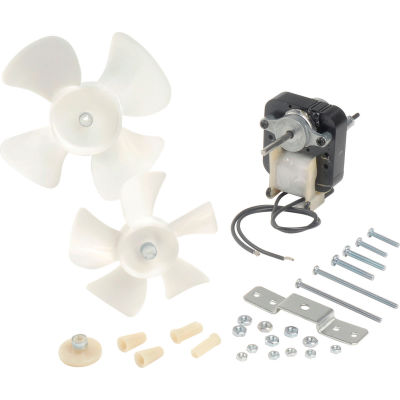

Supco® C Frame Utility Motor Kit/ 120V 3000 RPM rpm

Features/Benefits:
  • Versatile replacement for all "C" Frame and 3-1/2" Round Style motors
  • Impedance protected
  • Include fan blades FB402 and FB500
  • Shaft Dimensions are 3/16" x 1-1/4"
  • Rotation is CW and CCW

Product Specifications

  • BRANDSupco®
  • MANUFACTURERS PART NUMBERSM670
  • MOTOR RPM 60Hz3000
  • VOLTAGE120
  • PHASE1
  • ENCLOSURE TYPEOpen/Drip Proof
  • HERTZ50/60Hz
  • SPEEDS1
  • ROTATIONCCW/CW
  • THERMAL PROTECTIONImpedence
  • RATED RPM3000
  • MOUNTINGStud
  • BEARING TYPESleeve
  • APPROVALS OR CERTIFICATIONSUL and CSA
  • STACK SIZE INCHES5/8 (1.59 cm)
  • WIDTH INCHES1.75 (4.45 cm)
  • HEIGHT INCHES3 (7.62 cm)
  • RPM RANGE3001-3600
  • SHAFT DIAMETER INCHES3/16 (.48 cm)
  • SHAFT LENGTH INCHES1-1/4 (3.18 cm)
  • COMPATIBLE WITH/REPLACESERP ERM670, Gem EM670, Acme Miami 600,700,710,4670, Robertshaw 14001, Mars 90971
  • DESIGN CODESplit-phase
  • FL AMPS0.55
  • HERTZ (HZ)60
  • MOTOR TYPEShaded pole
Customer Review

5.0

  • 5 Star

    11
  • 4 Star

    3
  • 3 Star

    0
  • 2 Star

    1
  • 1 Star

    0

Most Recent Reviews

  • Most Recent Reviews
  • Highest Rated Reviews
  • Lowest Rated Reviews
  • Reviewer: BRYAN

    Date: August 22, 2020

    Great motor / fan for the price.
    Your review:
    Very simple to adjust and install, as I used it as a replacement in a wine fridge. RPM'S are excellnet, but it is a little bit noisy.
  • Reviewer: BRYAN

    Date: August 22, 2020

    Great motor / fan for the price.
    Your review:
    Very simple to adjust and install, as I used it as a replacement in a wine fridge. RPM'S are excellnet, but it is a little bit noisy.
  • Reviewer: Scott

    Date: May 08, 2020

    Replacement motor for Nutone bathroom fan
    Your review:
    Worked great as a replacement for a Nutone bathroom fan. I had to connect an AC adapter and fill the motor to spin the opposite direction. Both were very easy fixes and it made the until work like brand new. Very quiet. Thank you
  • Reviewer: RHONDA

    Date: April 03, 2020

    My fridge is fixed
    Your review:
    My Fridge is fixed thanks to the part I ordered from you. I thought it was going to cost me a fortune but it didn't
  • Reviewer: Daniel

    Date: April 03, 2020

    Wine Refrigerator Fan
    Your review:
    Well-packaged and shipping promptly.
  • Reviewer: Greg

    Date: June 13, 2019

    Great Product
    Your review:
    We have used quite a few of these motors with great results. We use them for replacement evaporator fans for older vending machines.
  • Reviewer: Vickie

    Date: April 23, 2019

    Very fast service
    Your review:
    We needed this for a solar panel fan. Their product was described very well. Service was very fast we had just a few days after ordering.
  • Reviewer: lawrence

    Date: April 23, 2019

    Excellent motor/fan Kit
    Your review:
    The kit was very complete
  • Reviewer: Randy K.

    Date: April 23, 2019

    Works great and easy to install
    Your review:
    This product was exactly what i needed. Came with all the parts and instructions do a quick install
  • Reviewer: Greg

    Date: April 23, 2019

    Great Product
    Your review:
    We have used several of these motors and have not had any problems. I would recommend this product to anyone.
Product Q & A

There are 3 questions and 3 answers for this product.

  • what is the measurement across center to center of the four mounting holes. Thank you, George

    Question Asked By: George, December 20, 2018

    Answer This Question

    Question Answered By:

    • anonymous

      Hello George, here are the measurements from left to right: the first hole is 1/4" from the edge to the center, the second hole is 1/2" from the first hole, and the middle hole is 1-1/2" from the second hole. The other side has the exact same dimensions. Thank you for your interest in our product.

  • what are the dimensions of the motor mount bar

    Question Asked By: Rami, January 10, 2017

    Answer This Question

    Question Answered By:

    • anonymous

      Hello Rami, The dimensions are 3-3/8" x 3/4" x 5/16" Thank you for your interest in our product!

  • How long is the shaft and what diameter is it? How big are the fans?

    Question Asked By: Mike, October 15, 2012

    Answer This Question

    Question Answered By:

    • Product Expert, October 15, 2012

      The shaft dimensions are 3/16 inches x 1-1/4inches. The fan blades are 4 inches and 5-1/2 inches.
