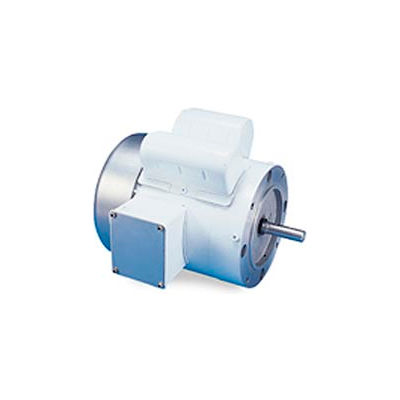

Leeson Motors Motor Washdown Motor-3/4HP, 115/208-230V, 1725RPM, TEFC, ROUND, 1.15 SF, 70 Eff.

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-3/4HP, 115/208-230V, 1725RPM, TEFC, ROUND, 1.15 SF, 70 Eff.

Item #: WBB228224

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$1,157.30 up to 51% OFF

Price: $581.00

Quantity Discount

  • Buy 1-2 $581.00 ea.
  • Buy 3+ $565.00 ea.

Quantity

Customers Also Viewed

Washguard White Epoxy Motor, Single Phase: 3/4HP, 1725 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 56 Frame, ROUND, 115/208-230V, 1PH, 60HZ, Name Plate Amps 10.8/5.4, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 70, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8.

Enhanced performance in wet, humid areas

  • Durable RUST-OLEUM® white epoxy coating
  • Stainless steel shaft, conduit box cover, nameplate, fan guard
  • Special gaskets, slingers and seals
  • Four endshield drains
  • Moisture-resistant interior components
  • Meets IP55 enclosure protection
  • 10:1 ratio for constant or variable torque at 1.0 SF


Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETEFC
  • FRAME56
  • BRANDLeeson
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE1
  • VOLTAGE115/208-230
  • NAMEPLATE AMPS10.8/5.4
  • COMPATIBLE WITH/REPLACESBaldor VWDL3507, Marathon N525
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8 (4.76 cm)
  • ROTATIONCCW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT34
  • ULY
  • CSAY
  • LEESON MODEL NO.C6C17WC4GG
  • UPC69172001385
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • FL EFFICIENCY70
  • CATALOG NUMBER114315.00
  • DESIGNCapacitor Start Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS10.8/5.4
  • MANUFACTURER PART #114315.00
