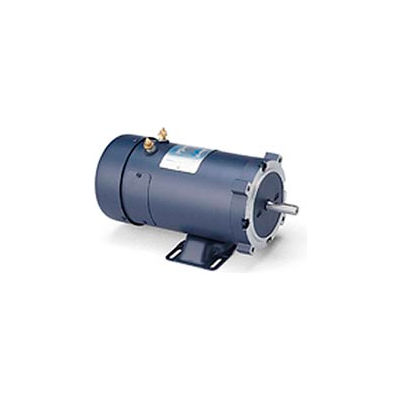

Leeson Motors DC Motor-1.0HP, 24V, 1800RPM, TEFC, Rigid C

Leeson Motors DC Motor-1.0HP, 24V, 1800RPM, TEFC, Rigid C

Item #: WBB236805

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$1,401.54 up to 43% OFF

Price: $802.00

Quantity

Customers Also Viewed

DC Motor: 1.0HP, 1800 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, S56C Frame, Rigid c, 24V, Continuous duty.

Suitable for applications having battery or solar powered operations, or generator supplied low voltage DC. These motors are high torque, continuous duty designs.

  • Easy Access Brushes for servicing
  • Large over-sized brushes assure longer brush life
  • Removable stamp steel base
  • Permanently lubricated sealed ball bearings
  • High starting Torque
  • Linear speed/torque over entire speed range
  • Capable of Dynamic braking
  • Two-lead connections for simple rotation reversing.

Click here to see our full selection of

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAMES56C
  • MOUNTINGC-Face Rigid
  • NAMEPLATE RPM1800
  • MOTOR RPM 60Hz1800
  • VOLTAGE24
  • DUTYContinuous
  • EFFICIENCY TYPEStandard
  • WEIGHT40
  • UPC69172000676
  • CATALOG NO.108053
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor CDP3445-V24, Marathon Z669
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
  • BRANDLeeson
  • is_motorYes
