Baldor-Reliance Single Phase Motor, L3608TM, 5 HP, 230 Volts, 3450 RPM, TEFC, 184T Frame

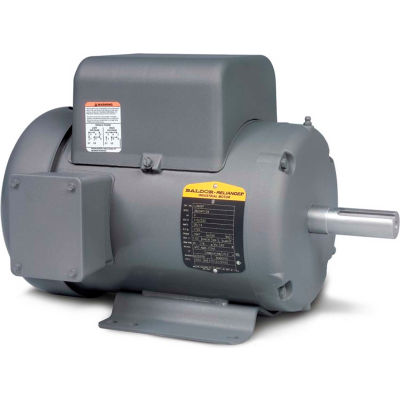

Actual product may differ from image shown

Baldor-Reliance Single Phase Motor, L3608TM, 5 HP, 230 Volts, 3450 RPM, TEFC, 184T Frame

Item #: WBB910308

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

Price: $1,519.00

Quantity

Customers Also Viewed

Baldor-Reliance Single Phase Motor, L3608TM, 5 HP, 230 Volts, 3450 RPM, TEFC, 184T Frame

In applications where only single phase power is utilized, these motors are available from 1/12 Hp through 15 Hp in TEFC and ODP designs. Standard foot mounted configurations are available, as well as C-Face foot mounted and C-Face footless. These are also offered in 1/4 Hp through 5 Hp as Super-E® Premium Efficient motors where energy savings is desired.

Features
  • Ball bearing design
  • 1-1/2 horsepower ratings are rated at 14 amps or less on 115 volts
  • Manual thermal overload located in the conduit box
  • UL and CSA recognized component approval
  • 200°C copper windings
Application(s)
  • Pressure washers, steam cleaners, portable and self contained stationary system for direct drive mount and coupled mount designs.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEFC
  • FRAME184T
  • MOUNTINGRigid
  • NAMEPLATE RPM3450
  • PHASE1
  • MOTOR RPM 60Hz3450
  • VOLTAGE230
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • RPM RANGE3001-3600
  • DESIGN CODEL
  • BEARING-DRIVE-END6206
  • BEARING-OPP-DRIVE-END6205
  • FL EFFICIENCY83
  • INSULATION CLASSF
  • FL AMPS19.5
  • KVA-CODEG
  • BRANDBaldor-Reliance
  • MANUFACTURER PART #L3608TM
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • BALDOR CATALOG NUMBERL3608TM
  • POWER-FACTOR99
  • C-DIMENSION INCHES18.05 (45.85 cm)
  • TYPESingle Phase Motor
  • SPEC. NUMBER36F227W957
