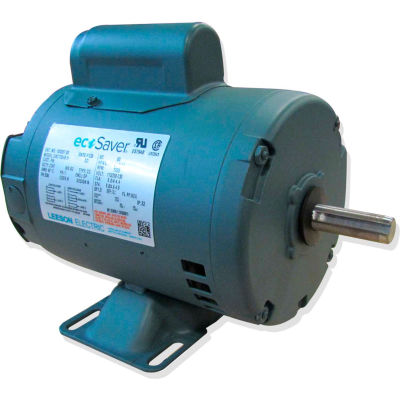

Leeson E100336.00, 1/3 HP, 3600RPM, S56 ODP 115/230V, 1PH 60HZ Cont. 40C 1.35 SF, Rigid

Actual product may differ from image shown

Leeson E100336.00, 1/3 HP, 3600RPM, S56 ODP 115/230V, 1PH 60HZ Cont. 40C 1.35 SF, Rigid

Item #: WBB2060750

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$575.10 up to 44% OFF

Minimum Quantity: 32

Price: $321.95

Quantity

Customers Also Viewed

Leeson E100336.00, 1/3 HP, 3600RPM, S56 ODP 115/230V, 1PH 60HZ Cont. 40C 1.35 SF, Rigid

For use where water and dust exposure is minimal. Ideally suited for use on pumps, compressors, blowers, fans and other standard industrial applications. This motor complies with the Dept. of Energy Small Motor Rule 2010 which took effect March 2015.

Product Specifications

  • HORSEPOWER1/3
  • ENCLOSUREDP
  • FRAME56
  • MOUNTINGRigid
  • NAMEPLATE RPM3450
  • PHASE1
  • MOTOR RPM 60Hz3600
  • VOLTAGE115/230
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.35
  • EFFICIENCY TYPEStandard
  • AMBIENT TEMP C40
  • WEIGHT22 (10 kg)
  • RPM RANGE3001-3600
  • WARRANTY3yrs from date of invoice
  • DEGREE OF PROTECTIONIP22
  • FL EFFICIENCY70.5
  • INSULATION CLASSB
  • FL AMPS3/1.5
  • DRIVE END BEARING SIZE6203
  • OPPOSITE END BEARING SIZE6203
  • BRANDLeeson
  • MANUFACTURER PART #E100336.00
  • is_motorYes
  • ENCLOSURE TYPEOpen/Drip Proof
  • POWER FACTOR AT FULL LOAD 98.4
  • TEMPERATURE-RISE10
  • POLES2
