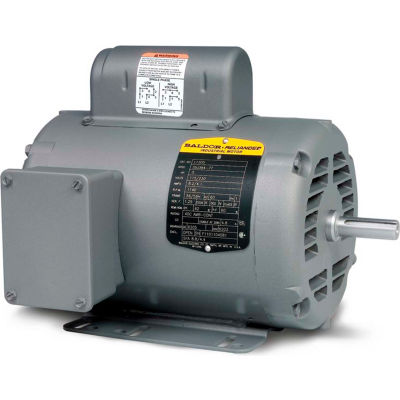

Baldor-Reliance Motor L1201, .17HP, 1140RPM, 1PH, 60HZ, 48, 3418L, OPEN, F1

Actual product may differ from image shown

Baldor-Reliance Motor L1201, .17HP, 1140RPM, 1PH, 60HZ, 48, 3418L, OPEN, F1

Item #: WBB389291

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$533.92 up to 6% OFF

Price: $502.00

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .17HP,1140RPM,1PH,60HZ,48,3418L,OPEN,F1

Features:
  • Copper windings
  • Rotors dynamically balanced
  • Ball bearings
  • Heavy guage steel frame construction
Typical Applications:
General purpose including compressors, pumps, conveyors, fans, machine tools and air conditioning units, etc.

Product Specifications

  • HORSEPOWER1/6
  • ENCLOSUREOPEN
  • FRAME48
  • MOUNTINGRigid
  • NAMEPLATE RPM1140
  • PHASE1
  • MOTOR RPM 60Hz1140
  • VOLTAGE115/230
  • HERTZ60
  • SERVICE FACTOR1.35
  • AMBIENT TEMP C40
  • WEIGHT23
  • RPM RANGE1101-1200
  • DESIGN CODEN
  • BEARING-DRIVE-END6203
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY47
  • INSULATION CLASSB
  • FL AMPS4.6/2.3
  • KVA-CODEP
  • 208V AMPS2.6
  • BRANDBaldor-Reliance
  • MANUFACTURER PART #L1201
  • DOE-CODE--
  • is_motorYes
  • ENCLOSURE TYPEOpen/Drip Proof
  • POWER-FACTOR52
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES9.38 (23.83 cm)
  • SERIAL-NUMBER--
  • POLES6
  • SPEC. NUMBER34F01-5612
