Price: $1,444.00
Customers Also Viewed
Motors specially suited for hot or cold pressure washer applications and other single phase installations requiring minimum starting and running amperages. Capacitor start, capacitor run construction for reduced amperage. Double shield ball bearings prelubricated with Exxon POLYREX® EM lubricant, having operating temperature range of -20°F to +350°F and special formulation to provide extra long life and moisture resistance. Dynamically balanced rotor and shaft assembly. High efficiency reduced amperage energy saving designs. Stator impregnated with extra heavy varnish system. High temperature copper magnet wire for high overload capacity. Grounding provision in conduit box. Manual reset overload protector protects against automatic resets. High overload capacities provided by service factor.
Weights & Dimensions
- Shaft Length 1-7/8 in (4.76 cm)
- Shaft Diameter 5/8
- Weight 49 lbs (22.27 kg)
Product Details
- Service Factor 1.0
- Horsepower 3 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Design Capacitor Start Capacitor Run
- Enclosure TEFC
- Phase 1
- Compatible Part/Model Number AO Smith/Magnetek, B382
- UPC 69172001442
- Brand Leeson
- Motor RPM 60 Hertz 3450 rpm
- Thermal Protection Manual
- Hertz 60 Hz
- Manufacturers Part Number 115048.00
- Nameplate Amps 14-13 A
- Mounting Location C-Face Rigid
- RPM 3450 rpm
- Rotation CCW °
- Efficiency Type Standard
- Material Rolled Steel
- Ambient Temperature 40 °C
- Efficiency 81.5
- RPM Range 3001-3600 rpm
- Shaft End Bearing 6203
- Voltage 208-230 V
- Frame 56H
Compliance & Certifications
- CSA Certified Y
- UL Y
There are no questions for this product.

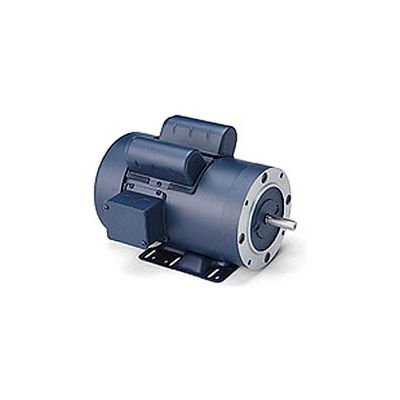

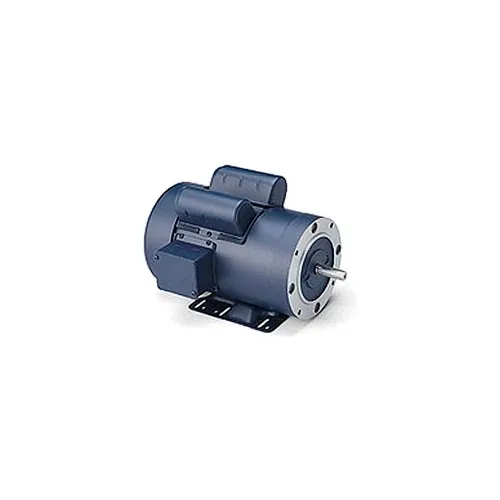

Leeson Motors - 3HP, 208-230V, 3450RPM, TEFC, Rigid C Mount, 1.0 S.F.
