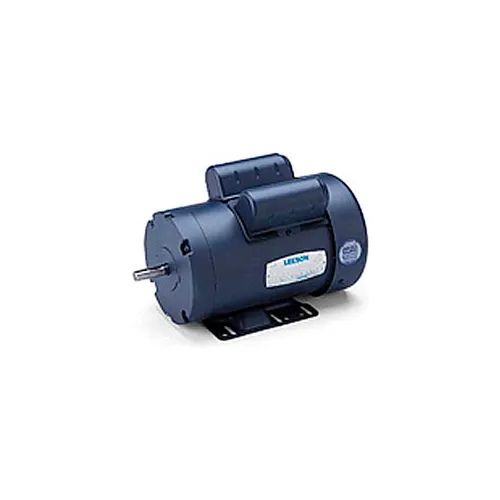

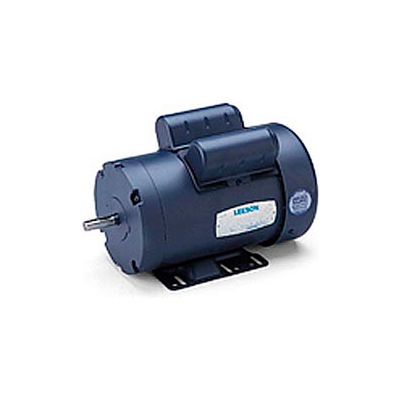

Leeson Motors - 2HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 2HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Item #: WBB217493

Not Yet Rated

Enter postal code for delivery date estimate

Shipping to 10465 change

$1,323.03 up to 3% OFF

Price: $1,281.00

Quantity

Customers Also Viewed

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Rigid Mount, 1.0 S.F.

Leeson Motors - 1.5HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 1.5HP, 115/230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount

Leeson Motors - 1HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.15 S.F.

Leeson Motors - 1HP, 115/208-230V, 3450RPM, TEFC, Rigid Mount, 1.15 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Leeson Motors - 3HP, 230V, 3450RPM, TEFC, Round Mount, 1.0 S.F.

Marathon Motors Woodworking Motor, T015, 56C34F5339, 1HP, 115/208-230V, 3600RPM, 1PH, 56 FR, TEFC

Marathon Motors Woodworking Motor, T015, 56C34F5339, 1HP, 115/208-230V, 3600RPM, 1PH, 56 FR, TEFC

Woodworking Motor: 2HP, 3450RPM, 56H Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid Mount.

Motors designed for woodworking equipment such as table saws, planers, etc. Totally enclosed designs prevent motor problems caused by wood dust and shavings.



Weights & Dimensions

  • Shaft Length 1-7/8 in (4.76 cm)
  • Shaft Diameter 5/8
  • Weight 44 lbs (20 kg)

Product Details

  • Service Factor 1.0
  • Horsepower 2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous
  • Design Capacitor Start Inductor Run
  • Enclosure TEFC
  • Phase 1
  • Compatible Part/Model Number AO Smith/Magnetek, B697, EB1202M
  • UPC 69172000866
  • Brand Leeson
  • Motor RPM 60 Hertz 3450 rpm
  • Thermal Protection Manual
  • Hertz 60 Hz
  • Manufacturers Part Number 110402.00
  • Nameplate Amps 20/11.4-10 A
  • Mounting Location Rigid
  • RPM 3450 rpm
  • Rotation CCW °
  • Efficiency Type Standard
  • Material Rolled Steel
  • Ambient Temperature 40 °C
  • Efficiency 73
  • RPM Range 3001-3600 rpm
  • Shaft End Bearing 6203
  • Voltage 115/208-230 V
  • Frame 56H

Compliance & Certifications

  • CSA Certified Y
  • UL N
