Price: $821.00
Customers Also Viewed

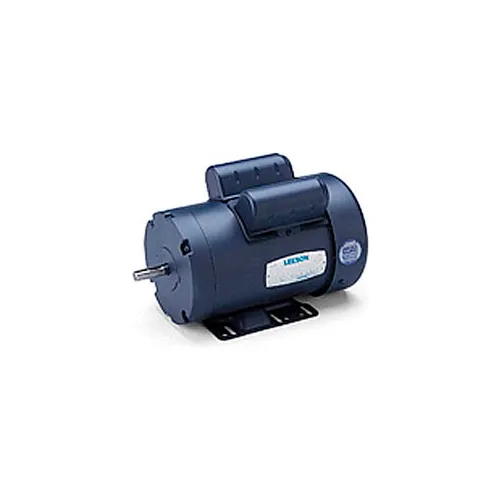

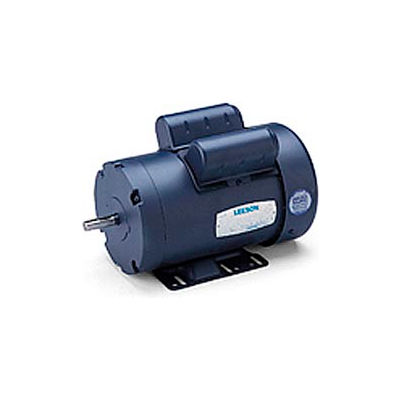

Woodworking Motor: 1HP, 3450RPM, 56 Frame, Totally-Enclosed, Fan-Cooled (TEFC), 115/208-230V, 1PH, Continuous duty, Manual thermal protection, 1.15 Service Factor, Rigid Mount.
Motors designed for woodworking equipment such as table saws, planers, etc. Totally enclosed designs prevent motor problems caused by wood dust and shavings.
Weights & Dimensions
- Shaft Length 1-7/8 in (4.76 cm)
- Shaft Diameter 5/8
- Weight 31 lbs (14.09 kg)
Product Details
- Service Factor 1.15
- Horsepower 1 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Design Capacitor Start Inductor Run
- Enclosure TEFC
- Phase 1
- Compatible Part/Model Number AO Smith/Magnetek, B695, EB1102M
- UPC 69172000792
- Brand Leeson
- Motor RPM 60 Hertz 3450 rpm
- Thermal Protection Manual
- Hertz 60 Hz
- Manufacturers Part Number 110142.00
- Nameplate Amps 12/6.2-6 A
- Mounting Location Rigid
- RPM 3450 rpm
- Rotation CCW °
- Efficiency Type Standard
- Material Rolled Steel
- Ambient Temperature 40 °C
- Efficiency 70
- RPM Range 3001-3600 rpm
- Shaft End Bearing 6203
- Voltage 115/208-230 V
- Frame 56
Compliance & Certifications
- CSA Certified Y
- UL Y
